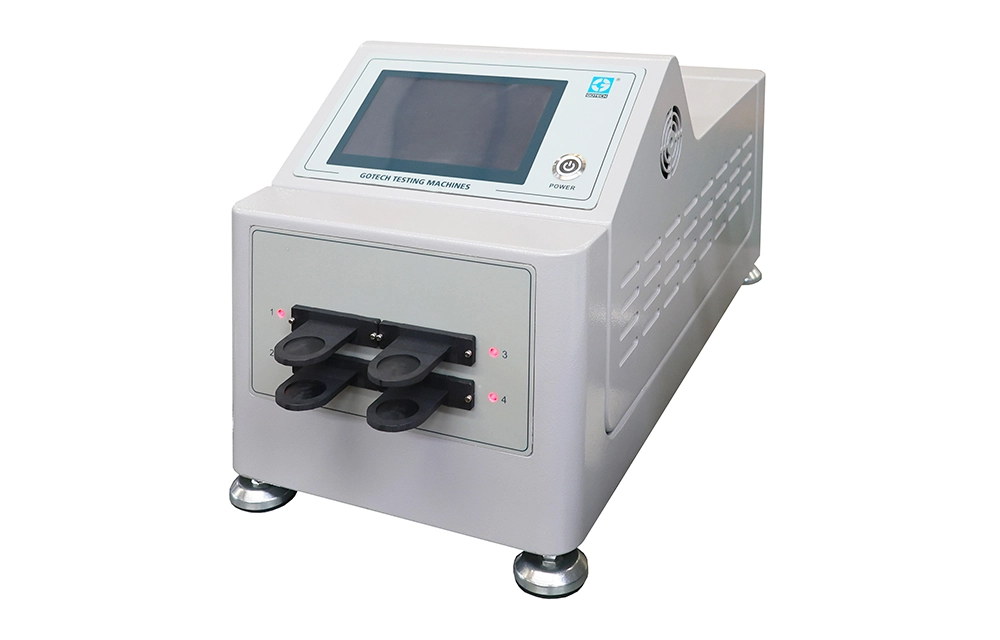

- Designed in accordance with GB/T 3517-2022 and ISO 2930-1995, the GT-FSM01-1 is used to age raw rubber samples at a prescribed temperature for a specified time. It is paired with the rapid plastimeter to measure plasticity after aging, enabling determination of the Plasticity Retention Index (PRI).
- With HMI and precise temperature control, the plastimeter aging oven can restore the oven temperature to 140℃ within two minutes. The 4-tray configuration allows up to 16 specimens to be aged simultaneously.
-
Standards
- GB/T 3517-2022
- ISO 2930-1995
Principle
The plastimeter aging oven is dedicated equipment for raw rubber aging tests. It precisely controls oven temperature (ambient +10℃ to 140℃) to simulate the aging environment. After specimens are uniformly heated at the specified temperature and duration, it pairs with the rapid plastimeter to measure post-aging plasticity and calculate the Plasticity Retention Index (PRI).
Wide applicability:
Well-suited for industries such as rubber manufacturing (raw rubber production), raw rubber R&D (new material formulation testing), third-party material testing (raw rubber quality certification), and rubber product manufacturing (incoming material inspection), as well as for research in rubber materials.
Rapid temperature recovery:
With HMI and precise temperature regulation, the plastimeter aging oven can restore the oven temperature to 140℃ within two minutes, ensuring uniform heating of all specimens and minimizing test errors.
High specimen capacity:
With four specimen trays, the instrument can hold up to 16 specimens (3.4±0.4mm thick). The chamber exchanges air 10 times per hours, keeping a clean aging environment suitable for batch testing of various raw rubber.
Heat dissipation design:
Equipped with a dedicated cooling fan, the system efficiently removes excess heat from the oven, preventing overheating during operation.
Standard conformity:
Designed in accordance with GB/T 3517-2022 and ISO 2930-1995, the tester ensures that the aging process, temperature control, and specimen requirement meet industry standards, reducing quality risks and enhance product credibility.
-
HMI interface
The touchscreen interface provides an intuitive and user-friendly experience, enabling operators to easily set test parameters and operate the tester.
Flexible test setup
Allows adjustment of preheat and test durations to accommodate various testing requirements.
High efficiency
Completes tests quickly, improving workflow and optimizing production processes.
-
左右滑動看表格
＊Product design and specifications are subject to change without notice.Temperature range Ambient temperature+10℃ to 140℃ Temperature display resolution 0.1℃ Specimen thickness 3.4±0.4mm Specimen capacity 16 pcs (4 trays) Air change rate 10 times/hour Weight (approx.) 30 kg Dimensions (approx.) (W×D×H) 29 cm × 65 cm × 34cm Power 1∮ AC220V 50Hz (or specify)
-
Details
Standards
- GB/T 3517-2022
- ISO 2930-1995
Principle
The plastimeter aging oven is dedicated equipment for raw rubber aging tests. It precisely controls oven temperature (ambient +10℃ to 140℃) to simulate the aging environment. After specimens are uniformly heated at the specified temperature and duration, it pairs with the rapid plastimeter to measure post-aging plasticity and calculate the Plasticity Retention Index (PRI).
Wide applicability:
Well-suited for industries such as rubber manufacturing (raw rubber production), raw rubber R&D (new material formulation testing), third-party material testing (raw rubber quality certification), and rubber product manufacturing (incoming material inspection), as well as for research in rubber materials.
Rapid temperature recovery:
With HMI and precise temperature regulation, the plastimeter aging oven can restore the oven temperature to 140℃ within two minutes, ensuring uniform heating of all specimens and minimizing test errors.
High specimen capacity:
With four specimen trays, the instrument can hold up to 16 specimens (3.4±0.4mm thick). The chamber exchanges air 10 times per hours, keeping a clean aging environment suitable for batch testing of various raw rubber.
Heat dissipation design:
Equipped with a dedicated cooling fan, the system efficiently removes excess heat from the oven, preventing overheating during operation.
Standard conformity:
Designed in accordance with GB/T 3517-2022 and ISO 2930-1995, the tester ensures that the aging process, temperature control, and specimen requirement meet industry standards, reducing quality risks and enhance product credibility.
-
Features
HMI interface
The touchscreen interface provides an intuitive and user-friendly experience, enabling operators to easily set test parameters and operate the tester.
Flexible test setup
Allows adjustment of preheat and test durations to accommodate various testing requirements.
High efficiency
Completes tests quickly, improving workflow and optimizing production processes.
-
Specifications 左右滑動看表格
＊Product design and specifications are subject to change without notice.Temperature range Ambient temperature+10℃ to 140℃ Temperature display resolution 0.1℃ Specimen thickness 3.4±0.4mm Specimen capacity 16 pcs (4 trays) Air change rate 10 times/hour Weight (approx.) 30 kg Dimensions (approx.) (W×D×H) 29 cm × 65 cm × 34cm Power 1∮ AC220V 50Hz (or specify)
