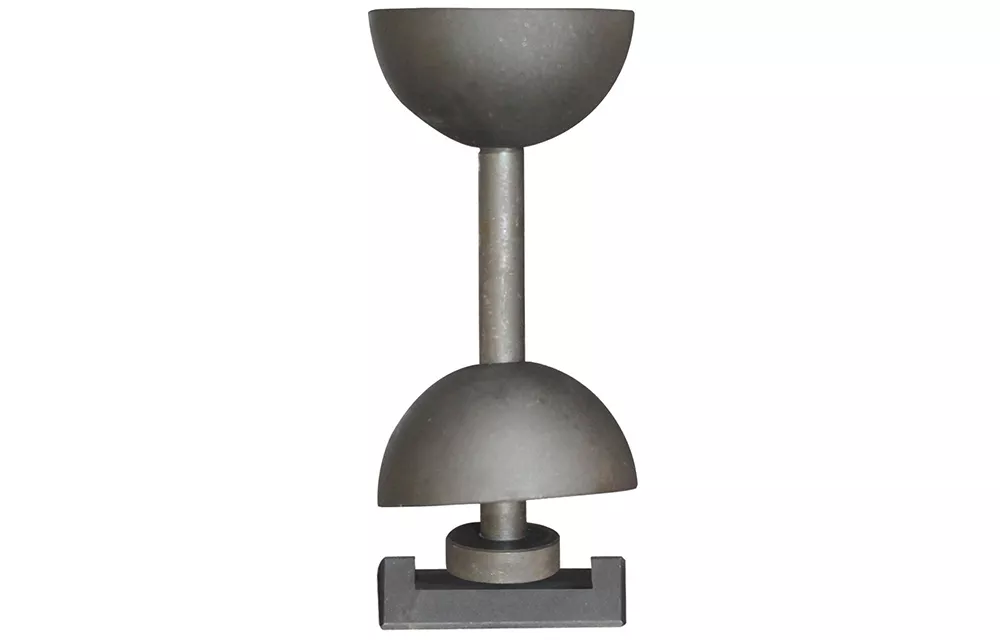

Rigid Substrates Pull-Off Grips (FCA-2)
Overview：
- The FCA-2 is specifically designed for adhesion strength testing of coatings on rigid substrates.
- The coating material is evenly applied to the surface of a rigid substrate and dried under specified conditions. It is then bonded to a test cylinder with suitable adhesive. After curing for the required time, the assembly is tested in a tensile tester to assess the tensile stress needed to rupture the coating and substrate.
-

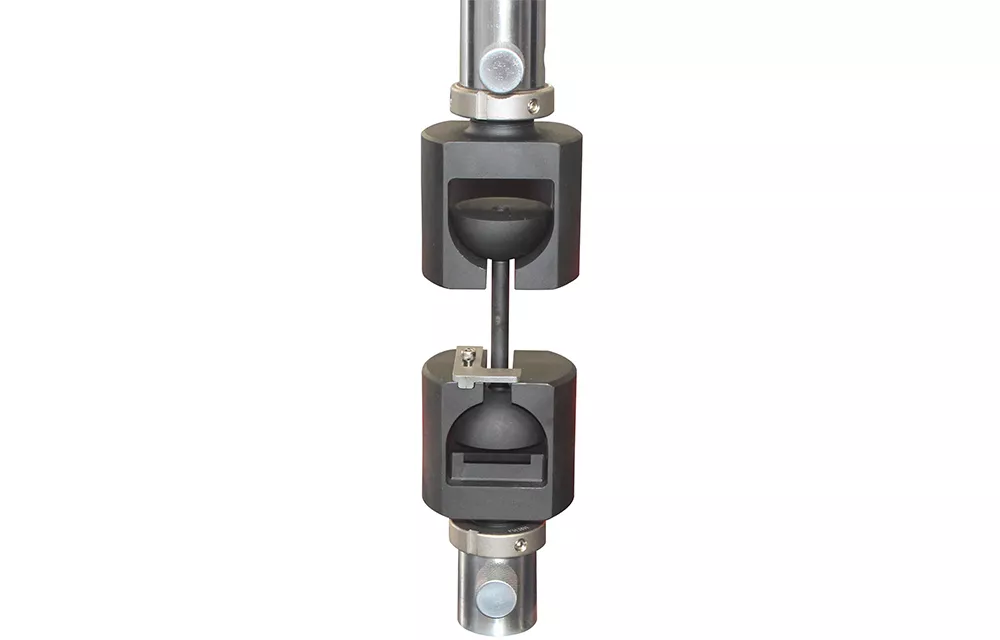

Manual grips
These manually operated grips provide secure and stable specimen holding for pull-off testing.
Structure
Features quick specimen installation and specimen alignment, providing accurate test results. Requires bonded specimen for testing.
Application
Ideal for adhesion pull-off testing of coatings on construction substrates, such as concrete and metal panels.
-
左右滑動看表格Standard conformance GB/T 5210 9.4.2 Capacity 500kg Diameter of test cylinder 20 mm Specimen size ≧30 mm in circular/square shape Scope of application Concrete and metal panels Dimensions (W×D×H) 70×50×260 mm Gripping method Manual gripping
＊Product design and specifications are subject to change without notice.
-
Features
Manual grips
These manually operated grips provide secure and stable specimen holding for pull-off testing.
Structure
Features quick specimen installation and specimen alignment, providing accurate test results. Requires bonded specimen for testing.
Application
Ideal for adhesion pull-off testing of coatings on construction substrates, such as concrete and metal panels.
-
Specifications 左右滑動看表格
Standard conformance GB/T 5210 9.4.2 Capacity 500kg Diameter of test cylinder 20 mm Specimen size ≧30 mm in circular/square shape Scope of application Concrete and metal panels Dimensions (W×D×H) 70×50×260 mm Gripping method Manual gripping
＊Product design and specifications are subject to change without notice.
型號
FCA-2
符合規範
GB/T 5210 9.4.2
容量
500kg
夾持方式
手動夾緊
試柱直徑
20 mm
試樣尺寸
≧30 mm圓片/正方形
應用範圍
混凝土板、金屬板等
體積(W×D×H)
70×50×260 mm
