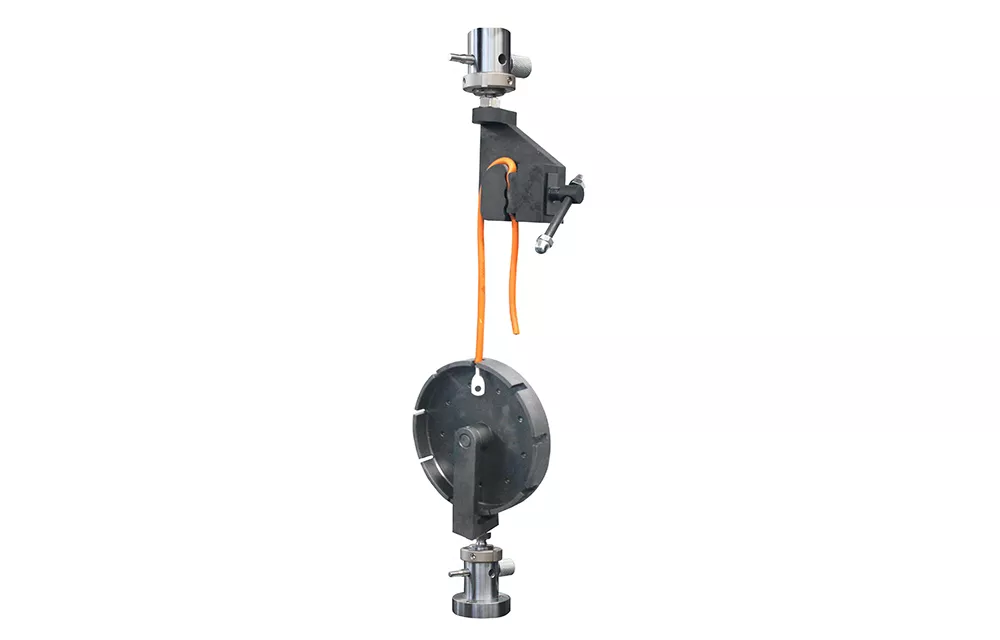

- The EA-5A grips are specifically designed for pull-off testing of wire terminals.
- The lower grip features access ports in various sizes to accommodate different wire terminals while the upper grip includes a vise-action mechanism for easy operation and adjustable specimen alignment, ensuring accurate and reliable results in pull-off testing.
-
Manual grips
These manually operated grips provide secure and stable specimen holding for pull-off testing.
Structure
Features a vise-action design, wave-shaped jaw faces, and adjustable specimen alignment for easy specimen setup.
Application
Well-suited for pull-off tests of wire terminals in various sizes.
Quick installation
Offers quick specimen installation and adjustment, saving time and minimizing effort for pull-off testing.
Versatile design
The lower grip is designed with various sizes of access ports to fit wires of different sizes, ensuring compatibility and ease of use during testing.
-
左右滑動看表格Capacity 200 kg Specimen size (Ф1.6~Ф8.1)±0.05 mm (or specify) Access port 9 (or specify) Scope of application Wire terminal pull-off test Dimensions (W×D×H) Upper grip: 120×60×160 mm
Lower grip: 150×60×230 mmGripping method Manual gripping
＊Product design and specifications are subject to change without notice.
-
Features
Manual grips
These manually operated grips provide secure and stable specimen holding for pull-off testing.
Structure
Features a vise-action design, wave-shaped jaw faces, and adjustable specimen alignment for easy specimen setup.
Application
Well-suited for pull-off tests of wire terminals in various sizes.
Quick installation
Offers quick specimen installation and adjustment, saving time and minimizing effort for pull-off testing.
Versatile design
The lower grip is designed with various sizes of access ports to fit wires of different sizes, ensuring compatibility and ease of use during testing.
-
Specifications 左右滑動看表格
Capacity 200 kg Specimen size (Ф1.6~Ф8.1)±0.05 mm (or specify) Access port 9 (or specify) Scope of application Wire terminal pull-off test Dimensions (W×D×H) Upper grip: 120×60×160 mm
Lower grip: 150×60×230 mmGripping method Manual gripping
＊Product design and specifications are subject to change without notice.
