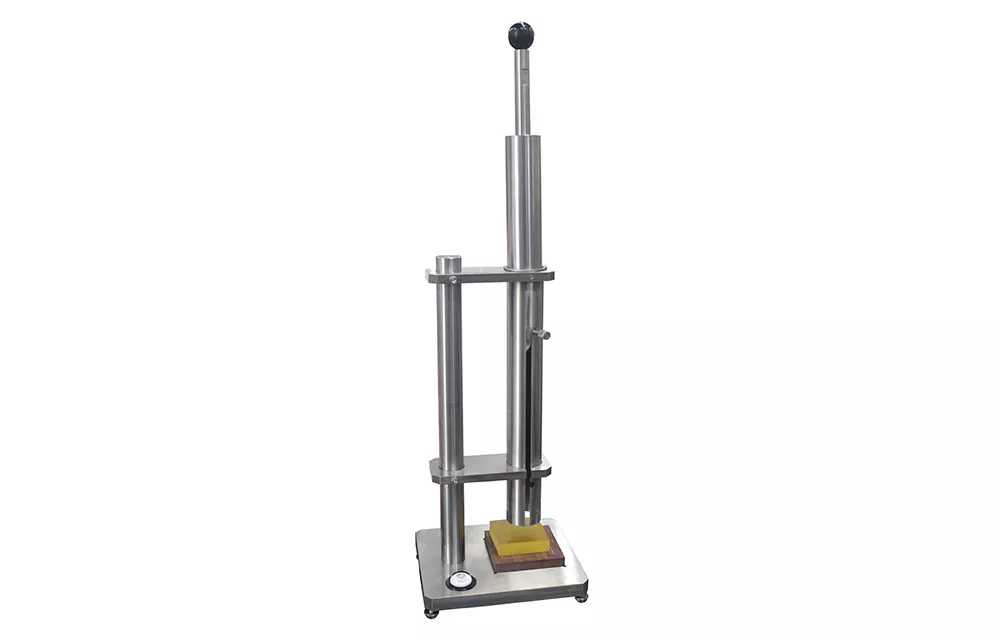

Drop Impact Apparatus (GT-7041-D)
Overview：
- The drop impact apparatus is specifically designed to test the brittleness of flexible plastic materials when subjected to impact at low temperature.
- The wood base, rubber pad, and specimen are stacked in order. The specimen is stapled 6mm from the edge of the wood base, and the entire drop impact apparatus is then placed in a low temperature chamber for conditioning. Afterward, the striker is released to strike the specimen, which is then removed to assess the fracture behavior.
-
Low-temp testing
Designed to test the brittleness behavior of flexible plastics in low temperature conditions.
Easy operation
Allowing for quick release of striker for impact testing without the need of complicated setup.
Reliability
Utilizes staples and rubber pads to enhance specimen stability during testing, ensuring reliable results.
-
左右滑動看表格
＊Product design and specifications are subject to change without notice.Standard conformity SAE J323-04 Method B Impact energy 10.8J (mass of striker: 4kg; drop height: 280mm) Radius of striking head 23.8mm Wood base 102×102×19 mm Rubber pad 75×75×19 mm Specimen size 100×100 mm Dimensions (W×D×H) 230×200×800 mm Gripping method Manual gripping
-
Features
Low-temp testing
Designed to test the brittleness behavior of flexible plastics in low temperature conditions.
Easy operation
Allowing for quick release of striker for impact testing without the need of complicated setup.
Reliability
Utilizes staples and rubber pads to enhance specimen stability during testing, ensuring reliable results.
-
Specifications 左右滑動看表格
＊Product design and specifications are subject to change without notice.Standard conformity SAE J323-04 Method B Impact energy 10.8J (mass of striker: 4kg; drop height: 280mm) Radius of striking head 23.8mm Wood base 102×102×19 mm Rubber pad 75×75×19 mm Specimen size 100×100 mm Dimensions (W×D×H) 230×200×800 mm Gripping method Manual gripping
型號
GT-7041-D
符合規範
SAE J323-04標準B法
衝擊能
10.8J(衝錘質量4kg，衝擊高度280mm)
衝頭半徑
23.8mm
木制底座
100×100 mm
體積(W×D×H)
230×200×800 mm
夾持方式
手動夾緊
