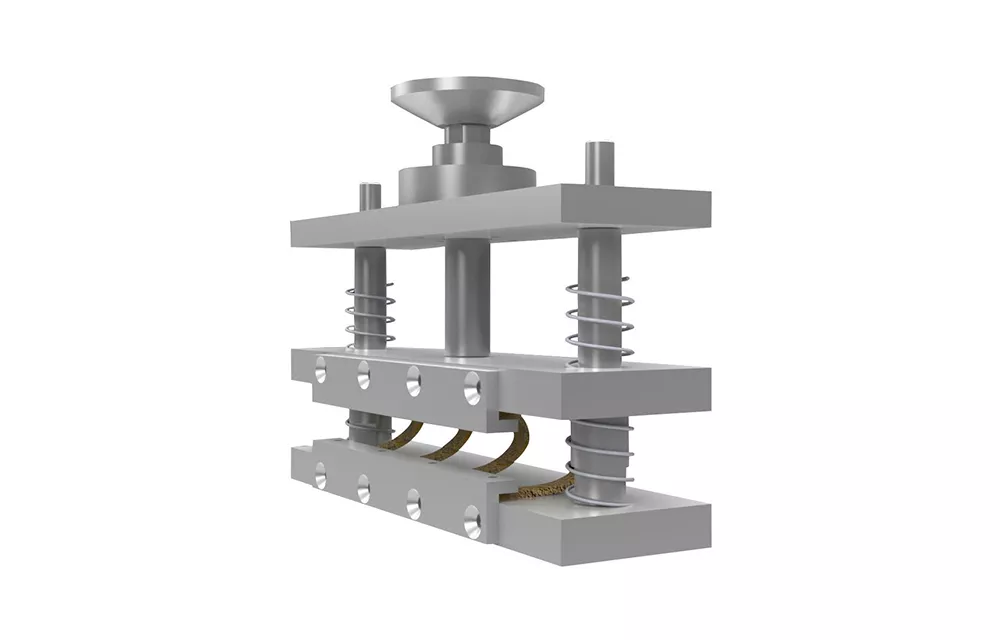

- The GT-7041-B fixture is utilized to assess the bending fracture behavior of specimens in low-temperature environments.
- The specimens are secured in the U-shaped groove between the upper and lower compression platens and fastened with screws. After freezing in a low-temperature chamber, the specimens are manually pressed to observe their bending behavior.
-
Principle
The specimens are secured in the U-shaped groove between the upper and lower compression platens and fastened with screws. After freezing in a low-temperature chamber, the specimens are manually pressed to observe their bending behavior.
Wide applicability:
Well-suited for bending fracture assessment of rubber hose and flexible plastic materials in low temperature environments.
Adjustable compression platen:
Capable of fitting specimens of various sizes using compression platens with an adjustable space of up to 63.5mm.
Precise specimen gripping:
Secures specimens precisely with a U-shaped groove conforming to standards, preventing slippage and ensuring test accuracy.
Low-temperature characteristics assessment:
Helps operators evaluate the mechanical properties of materials, such as bending and fracture behavior in low-temperature environments, offering a reference for material selection and improvement.
New materials development:
This fixture enables manufacturers to compare the mechanical performance of various materials through cold flexing tests, assisting in the development of new materials and the optimization of material designs.
Product quality inspection:
Supports manufacturers in verifying the mechanical performance of products under low-temperature conditions, ensuring they meet specific quality requirements.
-
High stability
Featuring a U-shaped groove design and screw-tightening mechanism, this fixture ensures high specimen stability, preventing slippage and delivering accurate test results.
Low-temp durability
Made of high-strength metal with superior low-temperature resistance, preventing deformation or brittleness in cold conditions.
Easy operation
The ergonomic design ensures ease of use, allowing operators to easily install specimens and perform tests with simple manual adjustments.
Broad adaptability
Capable of fitting specimens of various sizes using compression platens with an adjustable space, providing flexibility for a wide range of testing applications.
Compact structure
This fixture features a compact design and rust-resistant material, allowing up to four specimens to be tested simultaneously in an environmental chamber.
-
左右滑動看表格
＊Product design and specifications are subject to change without notice.Standard conformance SAE J323, ASTM D380 Space between compression platens 25 to 63.5mm (adjustable) Specimen size 114 x 6.3 x (2±0.25) mm Test station 4 sets Dimensions (W×D×H) 180×54×175 mm Gripping method Manual clamping
-
Details
Principle
The specimens are secured in the U-shaped groove between the upper and lower compression platens and fastened with screws. After freezing in a low-temperature chamber, the specimens are manually pressed to observe their bending behavior.
Wide applicability:
Well-suited for bending fracture assessment of rubber hose and flexible plastic materials in low temperature environments.
Adjustable compression platen:
Capable of fitting specimens of various sizes using compression platens with an adjustable space of up to 63.5mm.
Precise specimen gripping:
Secures specimens precisely with a U-shaped groove conforming to standards, preventing slippage and ensuring test accuracy.
Low-temperature characteristics assessment:
Helps operators evaluate the mechanical properties of materials, such as bending and fracture behavior in low-temperature environments, offering a reference for material selection and improvement.
New materials development:
This fixture enables manufacturers to compare the mechanical performance of various materials through cold flexing tests, assisting in the development of new materials and the optimization of material designs.
Product quality inspection:
Supports manufacturers in verifying the mechanical performance of products under low-temperature conditions, ensuring they meet specific quality requirements.
-
Features
High stability
Featuring a U-shaped groove design and screw-tightening mechanism, this fixture ensures high specimen stability, preventing slippage and delivering accurate test results.
Low-temp durability
Made of high-strength metal with superior low-temperature resistance, preventing deformation or brittleness in cold conditions.
Easy operation
The ergonomic design ensures ease of use, allowing operators to easily install specimens and perform tests with simple manual adjustments.
Broad adaptability
Capable of fitting specimens of various sizes using compression platens with an adjustable space, providing flexibility for a wide range of testing applications.
Compact structure
This fixture features a compact design and rust-resistant material, allowing up to four specimens to be tested simultaneously in an environmental chamber.
-
Specifications 左右滑動看表格
＊Product design and specifications are subject to change without notice.Standard conformance SAE J323, ASTM D380 Space between compression platens 25 to 63.5mm (adjustable) Specimen size 114 x 6.3 x (2±0.25) mm Test station 4 sets Dimensions (W×D×H) 180×54×175 mm Gripping method Manual clamping
