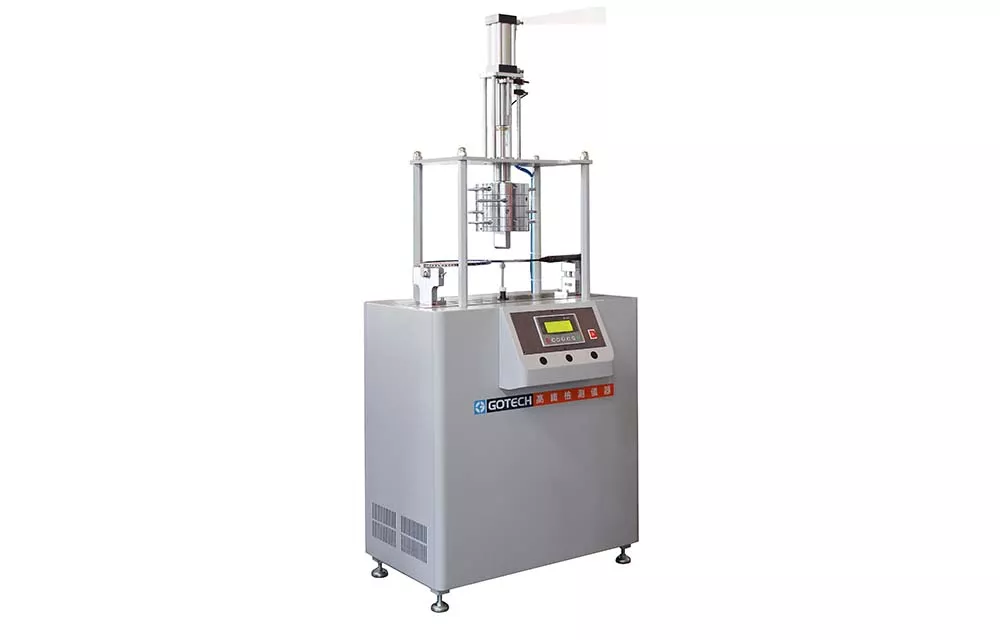

- The GT-7630-ACUB is specifically designed to determine the flexibility and deflection characteristics of badminton and tennis rackets.
- A specified load is applied to the racket specimen using pneumatic pressure. When the specimen deforms, the deflection is automatically calculated.
-
Standards
- GB/T 32608-2016 6.12和6.14
- GB/T 32609-2016 5.7
- QB/T 2770-2006 6.8和6.12
- QB/T 2769-2006 6.7
Principle
Utilizes pneumatic pressure to apply a specified load to the racket and assess its flexibility by measuring deflection.
Wide applicability:
Capable of testing rackets of various sizes and types with high adaptability.
High accuracy:
Delivers high precision in load control and deflection measurements, ensuring accurate test results.
Real-time test results:
Displays test results in real-time for easy observation and data recording.
Product design improvement:
Supports racket research and development by assessing material and structural characteristics to enhance product design.
Quality assurance:
Assists manufacturers in maintaining consistent product quality during production, ensuring the flexibility of the rackets meets the specific quality requirements.
Scientific research:
Offers valuable insights into the mechanical performance in racket structure and material for research and design optimization.
Standard conformity:
Ensures that products meet industry standards and satisfy quality expectations in the market.
-
Pneumatic control
Utilizes pneumatic control system to release and control the loading weight, ensuring easy and precise operation.
High accuracy
Equipped with LVDT sensors, providing accurate measurements for specimen deflection.
Adaptability
Meets the testing requirements for rackets of various sizes with an adjustable right support.
Auto-calculation
Automatically calculates and shows the flexibility and deflection of the specimen.
Easy operation
Featuring pneumatic control and auto-calculation, the GT-7630-ACUB offers easy operation and minimizes human error.
-
左右滑動看表格
＊Product design and specifications are subject to change without notice.Load 6kg, 250N, 300N Base weight of loading nose 6kg Counterweight A1+A2+A3=19kg
B=5kgStroke rod 0~100mm Support span 210~660mm Front end of support R=10mm Dimensions (approx.)（W×D×H） 90cm×70cm×188cm Power 1∮ AC 220V 50Hz (or specify)
-
Details
Standards
- GB/T 32608-2016 6.12和6.14
- GB/T 32609-2016 5.7
- QB/T 2770-2006 6.8和6.12
- QB/T 2769-2006 6.7
Principle
Utilizes pneumatic pressure to apply a specified load to the racket and assess its flexibility by measuring deflection.
Wide applicability:
Capable of testing rackets of various sizes and types with high adaptability.
High accuracy:
Delivers high precision in load control and deflection measurements, ensuring accurate test results.
Real-time test results:
Displays test results in real-time for easy observation and data recording.
Product design improvement:
Supports racket research and development by assessing material and structural characteristics to enhance product design.
Quality assurance:
Assists manufacturers in maintaining consistent product quality during production, ensuring the flexibility of the rackets meets the specific quality requirements.
Scientific research:
Offers valuable insights into the mechanical performance in racket structure and material for research and design optimization.
Standard conformity:
Ensures that products meet industry standards and satisfy quality expectations in the market.
-
Features
Pneumatic control
Utilizes pneumatic control system to release and control the loading weight, ensuring easy and precise operation.
High accuracy
Equipped with LVDT sensors, providing accurate measurements for specimen deflection.
Adaptability
Meets the testing requirements for rackets of various sizes with an adjustable right support.
Auto-calculation
Automatically calculates and shows the flexibility and deflection of the specimen.
Easy operation
Featuring pneumatic control and auto-calculation, the GT-7630-ACUB offers easy operation and minimizes human error.
-
Specifications 左右滑動看表格
＊Product design and specifications are subject to change without notice.Load 6kg, 250N, 300N Base weight of loading nose 6kg Counterweight A1+A2+A3=19kg
B=5kgStroke rod 0~100mm Support span 210~660mm Front end of support R=10mm Dimensions (approx.)（W×D×H） 90cm×70cm×188cm Power 1∮ AC 220V 50Hz (or specify)
