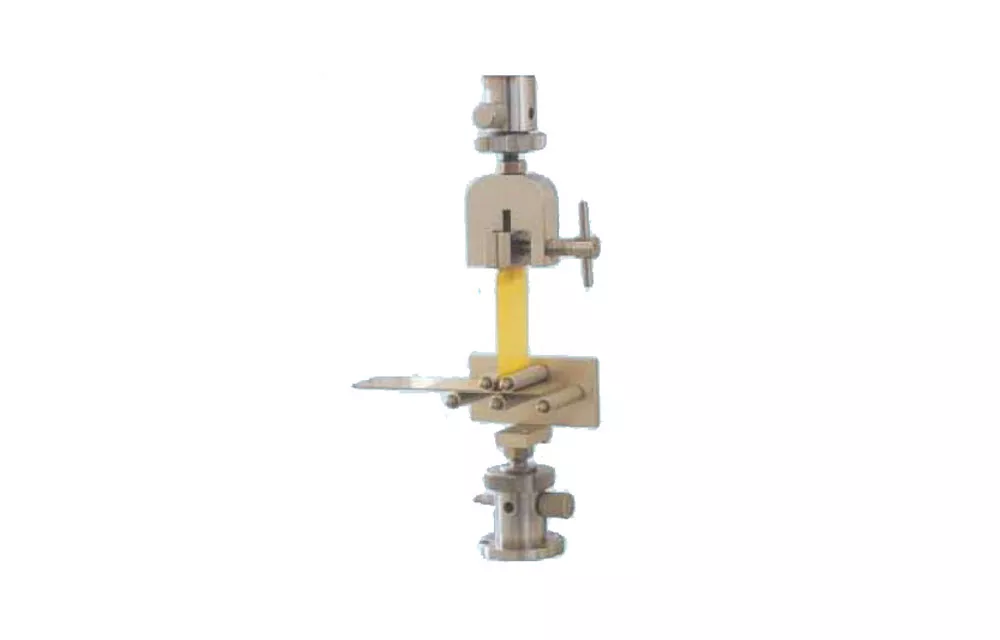

90° Angle Peeling Grips (FC-9-1)
-
Manual grips
The upper grip features a vise-action mechanism for easy operation.
Structure
Equipped with rollers that enable the specimen to slide during testing. Two sizes are available based on specimen dimensions. Offers customization for specimens with special specifications.
Application
Ideal for gripping specimens such as stickers, adhesive tapes, and pressure-sensitive adhesives.
-
左右滑動看表格Capacity 20kg Test plate (WxL)mm 50x150 Scope of application Sticker, adhesive tape, and pressure-sensitive adhesive Gripping method Manual Upper grip dimensions (TA-2)(WxDxH)mm 100x70x140 Lower grip dimensions (WxDxH)mm (Large)350x70x150 (small )100x70x120
＊Product design and specifications are subject to change without notice.
-
Features
Manual grips
The upper grip features a vise-action mechanism for easy operation.
Structure
Equipped with rollers that enable the specimen to slide during testing. Two sizes are available based on specimen dimensions. Offers customization for specimens with special specifications.
Application
Ideal for gripping specimens such as stickers, adhesive tapes, and pressure-sensitive adhesives.
-
Specifications 左右滑動看表格
Capacity 20kg Test plate (WxL)mm 50x150 Scope of application Sticker, adhesive tape, and pressure-sensitive adhesive Gripping method Manual Upper grip dimensions (TA-2)(WxDxH)mm 100x70x140 Lower grip dimensions (WxDxH)mm (Large)350x70x150 (small )100x70x120
＊Product design and specifications are subject to change without notice.
型號
FC-9-1
容量
20kg
應用範圍
貼紙,膠布,不幹膠等
夾持方式
手動
測試板尺寸(WxL)mm
50x150
上夾具體積(TA-2)(WxDxH)mm
100x70x140
下夾具體積(WxDxH)mm
(大)350x70x150(小)100x70x120
