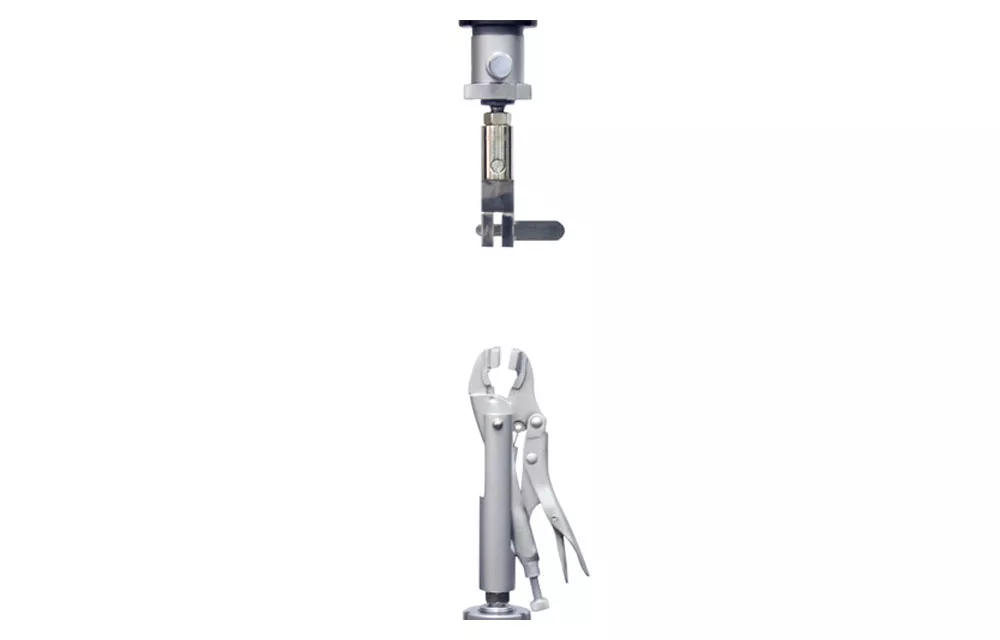

Stitch Tear Resistance Grips (FC-1)
Overview：
- Designed for tear resistance testing, the FC-1 grips are well-suited for leather, synthetic materials, and knitted fabrics.
-
Manual grips
These manually operated grips provide secure and stable specimen holding for tear testing.
Structure
Replicates the stress behavior in stitched leather. Provides selectable jaw faces for different specimens and uses the FA-1 as the lower grip.
Application
Ideal for securely holding leather, synthetic materials, and knitted fabrics for tear resistance testing.
-
左右滑動看表格Standard conformance DIN 53331 Capacity 50kg Scope of application Leather, synthetic materials, and knitted fabrics Gripping method Manual gripping Maximum specimen thickness 5mm Test speed 100mm/min Upper grip dimensions (W×D×H) mm 70x20x120 Lower grip dimensions (W×D×H) mm 50×50×250
＊Product design and specifications are subject to change without notice.
-
Features
Manual grips
These manually operated grips provide secure and stable specimen holding for tear testing.
Structure
Replicates the stress behavior in stitched leather. Provides selectable jaw faces for different specimens and uses the FA-1 as the lower grip.
Application
Ideal for securely holding leather, synthetic materials, and knitted fabrics for tear resistance testing.
-
Specifications 左右滑動看表格
Standard conformance DIN 53331 Capacity 50kg Scope of application Leather, synthetic materials, and knitted fabrics Gripping method Manual gripping Maximum specimen thickness 5mm Test speed 100mm/min Upper grip dimensions (W×D×H) mm 70x20x120 Lower grip dimensions (W×D×H) mm 50×50×250
＊Product design and specifications are subject to change without notice.
型號
FC-1
符合標準
DIN 53331
容量
50kg
應用範圍
天然皮革﹑合成材料﹑針織物
夾持方式
手動夾持
允許的最大試片厚度
5mm
測試速度
100mm/min
上夾具體積 (W×D×H) mm
70x20x120
下夾具體積 (W×D×H) mm
50×50×250
