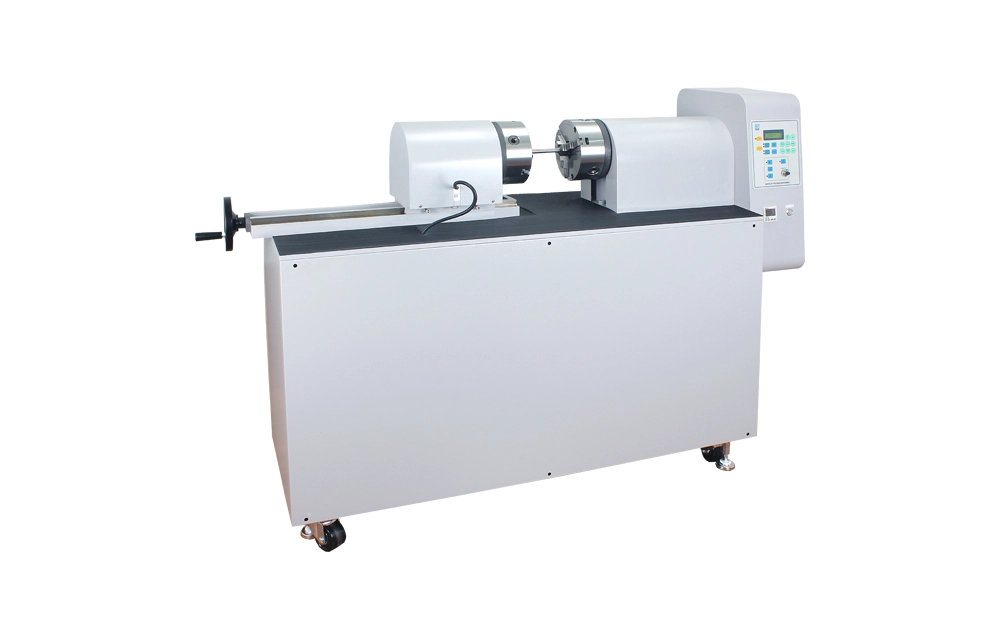

- The GT-7054-A1 is specifically designed to assess the torsional strength of various metallic wires and twist resistance of enameled wire coating.
- One end of the specimen is fixed, while the other end is rotated continuously 360° or reciprocally 180° until the specimen fails or the enamel coating peels off. The number of twists is recorded.
-
Standards
- CNS 941-104
PRINCIPLE
The cord torsion tester is used to assess material performance under torsional stress. It is applicable to determine the torsion strength of metallic wires and twist resistance of enameled wire coating.
Adjustable speed:
Rotation speed can be easily adjusted to meet different torsion testing requirements.
Adjustable grip distance:
Adjustable grip distance allows torsional stress to be applied according to specific test requirements, enabling more accurate assessment of material performance.
Wide applicability:
Suitable for testing various materials, including metal and enameled wires, offering versatility for different industries and applications.
High reliability and stability:
Designed for high reliability and stability, ensuring consistent long-term operation.
Product design improvement:
Reveals material torsional strength and twist resistance to enhance product reliability and performance.
Standard conformity:
Ensures that products meet industry standards and satisfy quality expectations in the market.
-
Hydraulic-driven
The hydraulic system is designed for reliable and stable operation, ensuring accurate and consistent test results.
Authentic simulation
With adjustable rotation speed and distance between grips, the instrument simulates real-world torsional stress to accurately assess material performance in actual use.
Intuitive interface
The intuitive and easy-to-use interface allows operators to quickly learn how to operate the instrument.
-
左右滑動看表格
＊Product design and specifications are subject to change without notice.Motor DC 1HP Grip type Hydraulic Space between grips 0 to 500mm (adjustable) Gripping diameter range 0 to 12mm Counter 0 to 999.9 (accurate to 0.1 revolution) Speed 40 to 70rpm (adjustable) Maximum torsion 2kg-m Power 3∮ AC220V 50/60Hz 6A (or specify)
-
Details
Standards
- CNS 941-104
PRINCIPLE
The cord torsion tester is used to assess material performance under torsional stress. It is applicable to determine the torsion strength of metallic wires and twist resistance of enameled wire coating.
Adjustable speed:
Rotation speed can be easily adjusted to meet different torsion testing requirements.
Adjustable grip distance:
Adjustable grip distance allows torsional stress to be applied according to specific test requirements, enabling more accurate assessment of material performance.
Wide applicability:
Suitable for testing various materials, including metal and enameled wires, offering versatility for different industries and applications.
High reliability and stability:
Designed for high reliability and stability, ensuring consistent long-term operation.
Product design improvement:
Reveals material torsional strength and twist resistance to enhance product reliability and performance.
Standard conformity:
Ensures that products meet industry standards and satisfy quality expectations in the market.
-
Features
Hydraulic-driven
The hydraulic system is designed for reliable and stable operation, ensuring accurate and consistent test results.
Authentic simulation
With adjustable rotation speed and distance between grips, the instrument simulates real-world torsional stress to accurately assess material performance in actual use.
Intuitive interface
The intuitive and easy-to-use interface allows operators to quickly learn how to operate the instrument.
-
Specifications 左右滑動看表格
＊Product design and specifications are subject to change without notice.Motor DC 1HP Grip type Hydraulic Space between grips 0 to 500mm (adjustable) Gripping diameter range 0 to 12mm Counter 0 to 999.9 (accurate to 0.1 revolution) Speed 40 to 70rpm (adjustable) Maximum torsion 2kg-m Power 3∮ AC220V 50/60Hz 6A (or specify)
