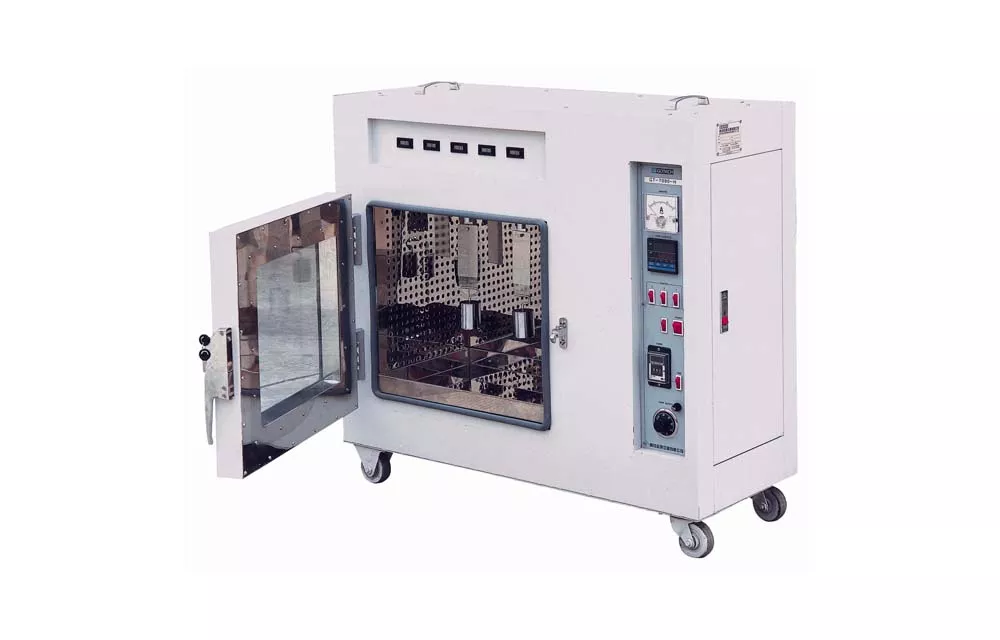

- The GT-7090-H5 is designed to assess the retentivity of pressure sensitive tapes. Equipped with a temperature-controlled chamber, it allows for more comprehensive testing under various temperature conditions.
- A strip of tape is applied to a test panel with a defined test weight suspended from its lower end under a specific temperature for a specified time. The distance the tape slides or the time to tape retention failure is measured to assess its service life and durability.
-
Standards
- CNS 11888
PRINCIPLE

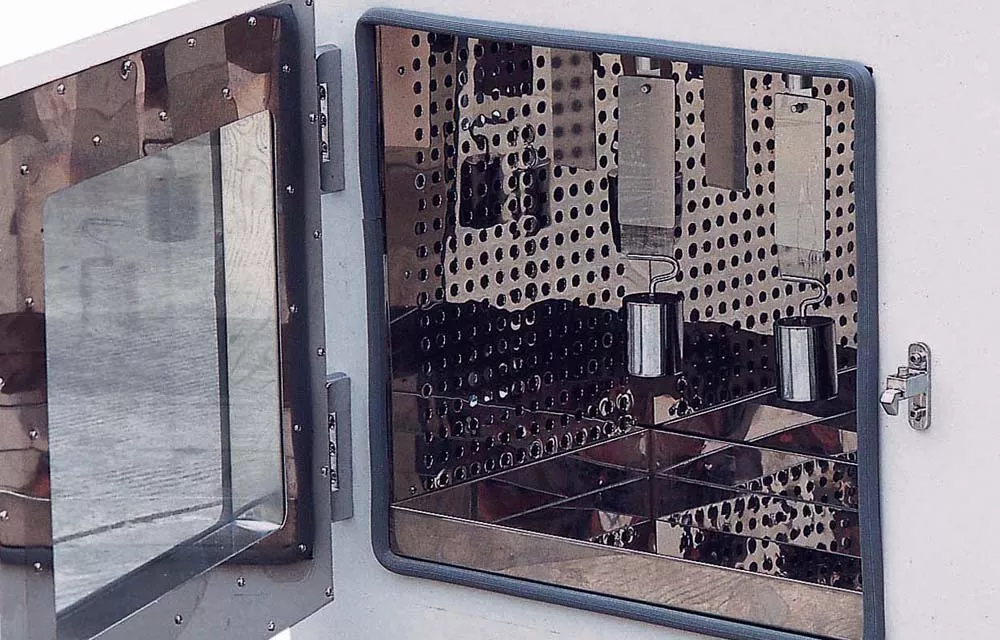

A tape specimen is uniformly applied to a test panel with a roller. A defined test weight is then suspended from its lower end for a specified time. The sliding distance or the time to tape retention failure is recorded to evaluate the adhesion retention property, durability, and service life of the tape.
Wide applicability:
Well-suited for a variety of industries such as aviation, material science, construction, automotive, electronics, medical devices, and industrial manufacturing.
Durability evaluation:
Provides valuable insights into the durability and lifespan of tape, offering essential data to support product design improvements.
Production efficiency enhancement:
Helps manufacturers identify potential adhesion defects, preventing unnecessary costs for correction and adjustment in the production process.
Quality control equipment:
Assists manufacturers in confirming that adhesive tape products meet specific quality standards, ensuring consistent and reliable performance.
Standard conformity:
Ensures that products meet industry standards and satisfy quality expectations in the market.
-

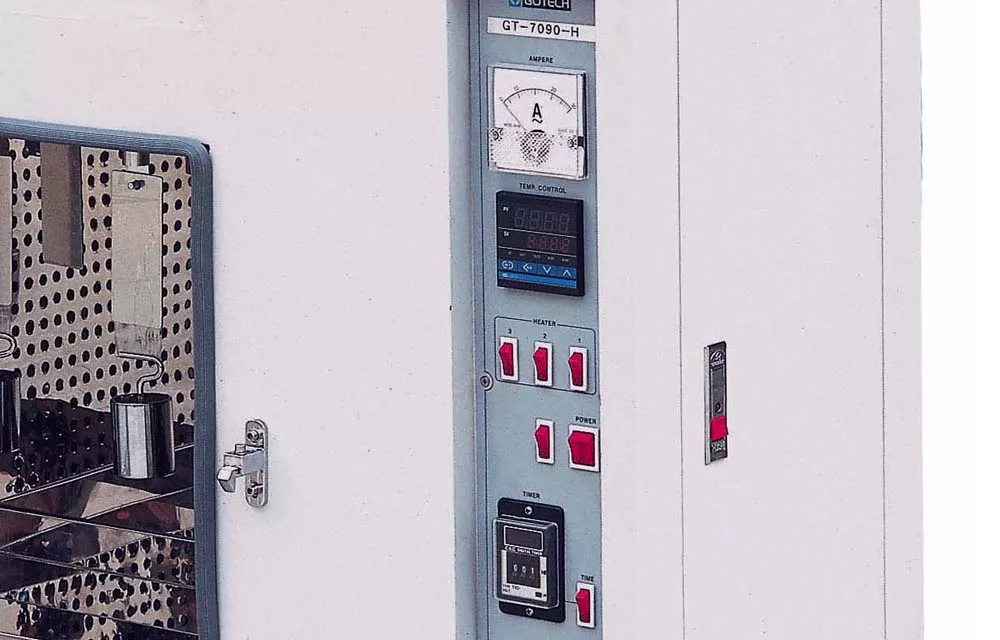

Constant temperature control
Equipped with a precise and constant temperature control system to ensure stable testing conditions.

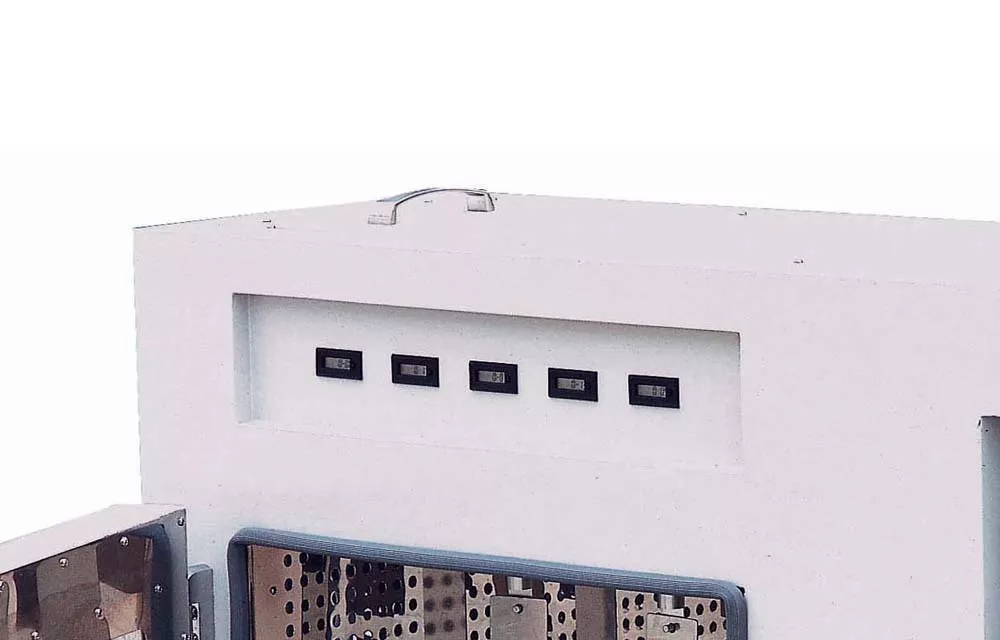

Data recording
Records the retention time when the adhesive tape falls, tracking how long the tape stays attached before detaching.
High adaptability
Capable of handling a variety of adhesive materials, providing great flexibility for retentivity testing.
-
左右滑動看表格
＊Product design and specifications are subject to change without notice.Load 1kg × 5pcs Test station 5 Timer LED 0 to 999,999 min (or sec) Temp. range Ambient temp. + 10℃ to 200℃ Temp. resolution 0.1℃ Heating system Air circulation Temp. control accuracy ±0.5℃ Temp. control system PID + SSR Temp. controller display LED display Safety device Over-heat and over-current protectors Material Stainless steel (interior), steel and baked finish (exterior) Interior dimensions (W×D×H) 50×35×45cm Exterior dimensions (W×D×H) 110×47×90cm Weight (approx.) 82kg Power 1∮, AC 220V (or specify)
-
Details
Standards
- CNS 11888
PRINCIPLE
A tape specimen is uniformly applied to a test panel with a roller. A defined test weight is then suspended from its lower end for a specified time. The sliding distance or the time to tape retention failure is recorded to evaluate the adhesion retention property, durability, and service life of the tape.
Wide applicability:
Well-suited for a variety of industries such as aviation, material science, construction, automotive, electronics, medical devices, and industrial manufacturing.
Durability evaluation:
Provides valuable insights into the durability and lifespan of tape, offering essential data to support product design improvements.
Production efficiency enhancement:
Helps manufacturers identify potential adhesion defects, preventing unnecessary costs for correction and adjustment in the production process.
Quality control equipment:
Assists manufacturers in confirming that adhesive tape products meet specific quality standards, ensuring consistent and reliable performance.
Standard conformity:
Ensures that products meet industry standards and satisfy quality expectations in the market.
-
Features
Constant temperature control
Equipped with a precise and constant temperature control system to ensure stable testing conditions.
Data recording
Records the retention time when the adhesive tape falls, tracking how long the tape stays attached before detaching.
High adaptability
Capable of handling a variety of adhesive materials, providing great flexibility for retentivity testing.
-
Specifications 左右滑動看表格
＊Product design and specifications are subject to change without notice.Load 1kg × 5pcs Test station 5 Timer LED 0 to 999,999 min (or sec) Temp. range Ambient temp. + 10℃ to 200℃ Temp. resolution 0.1℃ Heating system Air circulation Temp. control accuracy ±0.5℃ Temp. control system PID + SSR Temp. controller display LED display Safety device Over-heat and over-current protectors Material Stainless steel (interior), steel and baked finish (exterior) Interior dimensions (W×D×H) 50×35×45cm Exterior dimensions (W×D×H) 110×47×90cm Weight (approx.) 82kg Power 1∮, AC 220V (or specify)
