- The HDT/VICAT tester is specifically designed to assess the heat deflection temperature (HDT) and the VICAT softening temperature of materials, providing essential data for evaluating their thermal properties.
- This instrument provides a variety of test options, allowing operators to determine the deflection and softening temperature of plastics and polymers under various conditions.
-
Standards
- ASTM D648-18
- ASTM D1525-17e1
- ISO 75-1:2013
- ISO 75-2:2013
- ISO 306:2013
- GB/T 1634.2-2019
- GB/T 1634.1-2019
- JIS K 7206-2016
PRINCIPLE

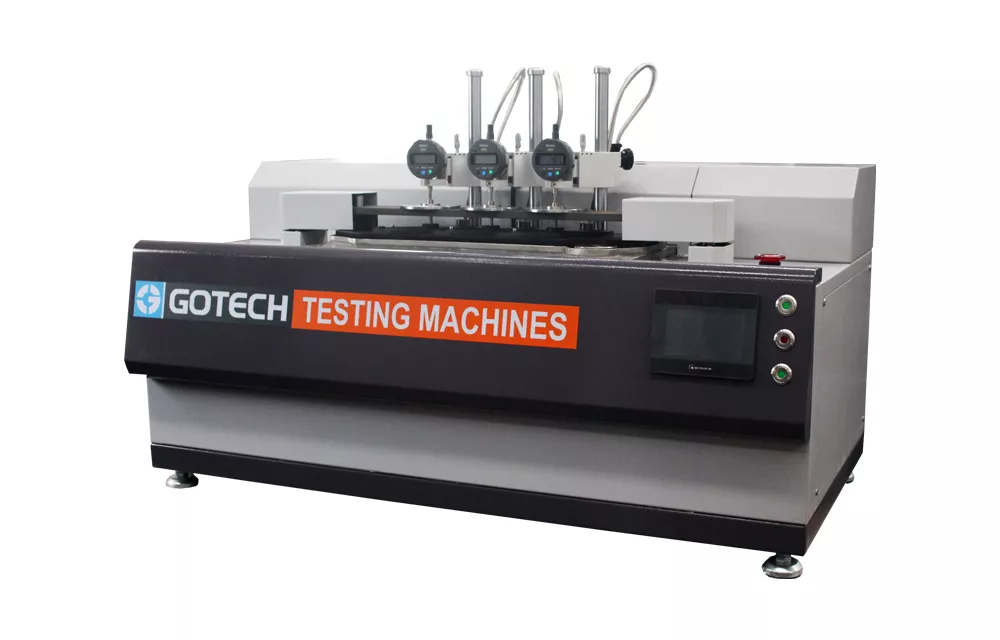

The HV-3000-D3 HDT/VICAT tester is a compact model for assessing the heat deflection temperature (HDT) and VICAT softening temperature of materials under specific loads and temperatures. It provides manufacturers an easy-to-use solution to evaluate the deflection performance of materials when subjected to high temperatures. The insights delivered by this instrument are valuable for optimizing product design and material selection, ensuring that the products meet the expected performance.
Wide applicability:
Well-suited for diverse industries such as aerospace, material science, construction, automotive, energy, medical devices, and industrial manufacturing.
Flexibility:
The motorized test station allows operators to install samples and conducts tests easily and quickly.
High-precision control:
Employs linear calibration methods to maintain accuracy in measurements across different temperature conditions.
Uniform temperature distribution:
Utilizes a high-efficiency vortex stirrer system to achieve uniform temperature distribution in the oil bath, enhancing test repeatability and reliability.
Fume extraction:
Constructed with an enclosed extraction structure to remove fumes generated during tests, ensuring safety during operation.
Water cooling system:
The HV-3000-D3 is equipped with an efficient water-cooling heat exchanger and water solenoid valve to remove heat in the oil bath. Additionally, an optional and specialized water chiller is also available to cool down the oil bath more effectively.
-
Benchtop design
The compact design makes the HV-3000-P an ideal instrument for laboratories and limited workspaces.
Easy operation

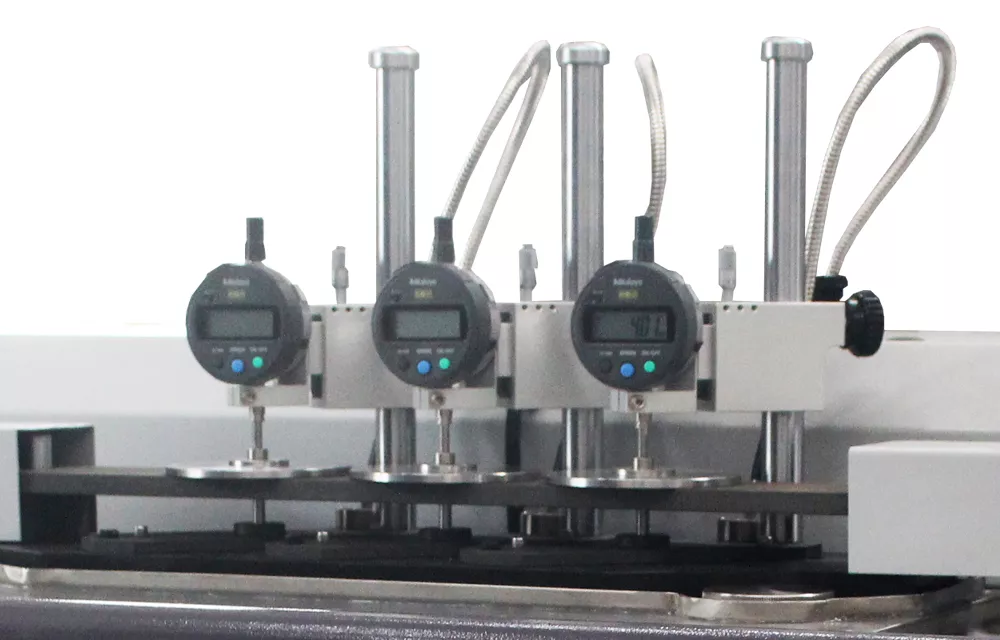

The intuitive operation interface and digital dial gauges make the HV-3000-D3 an easy-to-operate instrument without complexity.
Energy-saving
Utilizing a reduced-sized oil bath to decrease the consumption of heat-conducting fluid, thereby improving temperature control efficiency.
-
左右滑動看表格
＊Product design and specifications are subject to change without notice.Operating system PLC+HMI Test station 3 Deflection measuring sensor Digital indicator Deflection / penetration measuring range 0 to 5 mm (resolution: 0.01 mm) Temp. range Ambient temp. +10℃ to 300℃ Heating rate 2±0.2℃/min(HDT) / 50±5℃/h(VICAT) Cooling method Water piping Test method HDT and VICAT Dimension (W×D×H) 100×63×65 cm Power 1∮ AC 220V (or specify)
-
Details
Standards
- ASTM D648-18
- ASTM D1525-17e1
- ISO 75-1:2013
- ISO 75-2:2013
- ISO 306:2013
- GB/T 1634.2-2019
- GB/T 1634.1-2019
- JIS K 7206-2016
PRINCIPLE
The HV-3000-D3 HDT/VICAT tester is a compact model for assessing the heat deflection temperature (HDT) and VICAT softening temperature of materials under specific loads and temperatures. It provides manufacturers an easy-to-use solution to evaluate the deflection performance of materials when subjected to high temperatures. The insights delivered by this instrument are valuable for optimizing product design and material selection, ensuring that the products meet the expected performance.
Wide applicability:
Well-suited for diverse industries such as aerospace, material science, construction, automotive, energy, medical devices, and industrial manufacturing.
Flexibility:
The motorized test station allows operators to install samples and conducts tests easily and quickly.
High-precision control:
Employs linear calibration methods to maintain accuracy in measurements across different temperature conditions.
Uniform temperature distribution:
Utilizes a high-efficiency vortex stirrer system to achieve uniform temperature distribution in the oil bath, enhancing test repeatability and reliability.
Fume extraction:
Constructed with an enclosed extraction structure to remove fumes generated during tests, ensuring safety during operation.
Water cooling system:
The HV-3000-D3 is equipped with an efficient water-cooling heat exchanger and water solenoid valve to remove heat in the oil bath. Additionally, an optional and specialized water chiller is also available to cool down the oil bath more effectively.
-
Features
Benchtop design
The compact design makes the HV-3000-P an ideal instrument for laboratories and limited workspaces.
Easy operation
The intuitive operation interface and digital dial gauges make the HV-3000-D3 an easy-to-operate instrument without complexity.
Energy-saving
Utilizing a reduced-sized oil bath to decrease the consumption of heat-conducting fluid, thereby improving temperature control efficiency.
-
Specifications 左右滑動看表格
＊Product design and specifications are subject to change without notice.Operating system PLC+HMI Test station 3 Deflection measuring sensor Digital indicator Deflection / penetration measuring range 0 to 5 mm (resolution: 0.01 mm) Temp. range Ambient temp. +10℃ to 300℃ Heating rate 2±0.2℃/min(HDT) / 50±5℃/h(VICAT) Cooling method Water piping Test method HDT and VICAT Dimension (W×D×H) 100×63×65 cm Power 1∮ AC 220V (or specify)
