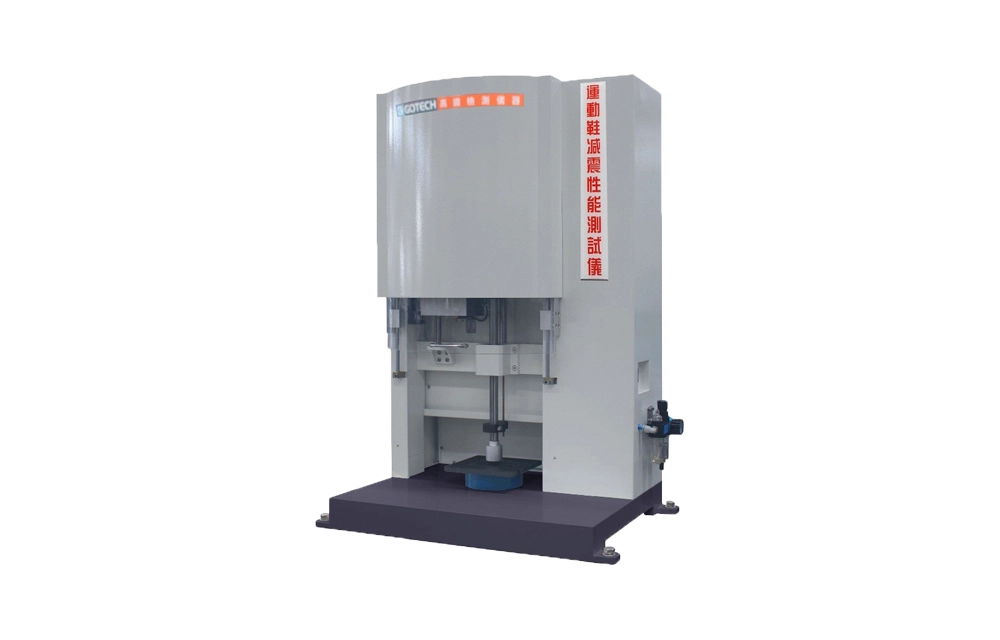

- The GT-7042-AF1 is specifically designed to assess the shock attenuating characteristics, as well as rapid rate force-displacement relationships of materials.
- This instrument is well-suited for materials system utilized in midsole of athletic shoes for use in normal running.
-
Standards
- SATRA TM142
- ASTM F1976-2024
- GB/T 24152-2018 (4.7)
- GB/T 30907-2014
Principle
The GT-7042-AF1 is specifically designed to assess the shock attenuating properties of midsole of athletic shoes.
Characteristics assessment:
Assists manufacturers in evaluating the ability of midsole materials to absorb impact energy, ensuring that athletic shoes can deliver sufficient shock absorption in use.
Material research and development:
Provides valuable insights into shock attenuating properties of materials, assisting manufacturers in improving material design and selection during research and development.
Quality assurance:
Enables manufacturers to maintain sufficient quality and performance of midsole materials, ensuring they meet specific testing requirements during production processes.
Performance comparability:
Allows for comparing the performance between various athletic shoes, verifying the differences in shock attenuating characteristics.
Standard conformity:
Ensures that products meet industry standards and satisfy quality expectations in the market.
-
Precision measurement
Utilizing high-precision load cell and stroke detector to conduct testing precisely and ensure the accuracy of test results.
Flexible test options
The dedicated software and flexible parameters settings allow operators to easily set and modify test conditions to meet a variety of testing requirements.
Powerful database
Enables operators to record and search test results, facilitating the evaluation of materials performance.
-
左右滑動看表格Conformance ASTM F1976-2024, GB/T 24152-2018 (4.7), GB/T 30907-2014 SATRA TM142 Impact striker Rounded edge of the tup with radius of 1.0±0.25mm, 45 mm flat circular diameter, mass of tup less than 0.2 kg A dome with radius of curvature of 37.5±0.5mm on the lower surface; 45mm diameter of the base of dome Impact energy 5±0.5J; 7±0.5J 5J Test speed 2±1 sec per cycle 2 to 3 sec per cycle Test method Free-fall dropping Capacity 5000lbf; sampling rate > 1000HZ Stroke sensor 0 to 100mm; sampling rate > 1000Hz Dimensions (W×D×H) 89cm×55cm×117cm Power 1∮ AC 220V 50Hz
＊Product design and specifications are subject to change without notice.
-
Details
Standards
- SATRA TM142
- ASTM F1976-2024
- GB/T 24152-2018 (4.7)
- GB/T 30907-2014
Principle
The GT-7042-AF1 is specifically designed to assess the shock attenuating properties of midsole of athletic shoes.
Characteristics assessment:
Assists manufacturers in evaluating the ability of midsole materials to absorb impact energy, ensuring that athletic shoes can deliver sufficient shock absorption in use.
Material research and development:
Provides valuable insights into shock attenuating properties of materials, assisting manufacturers in improving material design and selection during research and development.
Quality assurance:
Enables manufacturers to maintain sufficient quality and performance of midsole materials, ensuring they meet specific testing requirements during production processes.
Performance comparability:
Allows for comparing the performance between various athletic shoes, verifying the differences in shock attenuating characteristics.
Standard conformity:
Ensures that products meet industry standards and satisfy quality expectations in the market.
-
Features
Precision measurement
Utilizing high-precision load cell and stroke detector to conduct testing precisely and ensure the accuracy of test results.
Flexible test options
The dedicated software and flexible parameters settings allow operators to easily set and modify test conditions to meet a variety of testing requirements.
Powerful database
Enables operators to record and search test results, facilitating the evaluation of materials performance.
-
Specifications 左右滑動看表格
Conformance ASTM F1976-2024, GB/T 24152-2018 (4.7), GB/T 30907-2014 SATRA TM142 Impact striker Rounded edge of the tup with radius of 1.0±0.25mm, 45 mm flat circular diameter, mass of tup less than 0.2 kg A dome with radius of curvature of 37.5±0.5mm on the lower surface; 45mm diameter of the base of dome Impact energy 5±0.5J; 7±0.5J 5J Test speed 2±1 sec per cycle 2 to 3 sec per cycle Test method Free-fall dropping Capacity 5000lbf; sampling rate > 1000HZ Stroke sensor 0 to 100mm; sampling rate > 1000Hz Dimensions (W×D×H) 89cm×55cm×117cm Power 1∮ AC 220V 50Hz
＊Product design and specifications are subject to change without notice.
