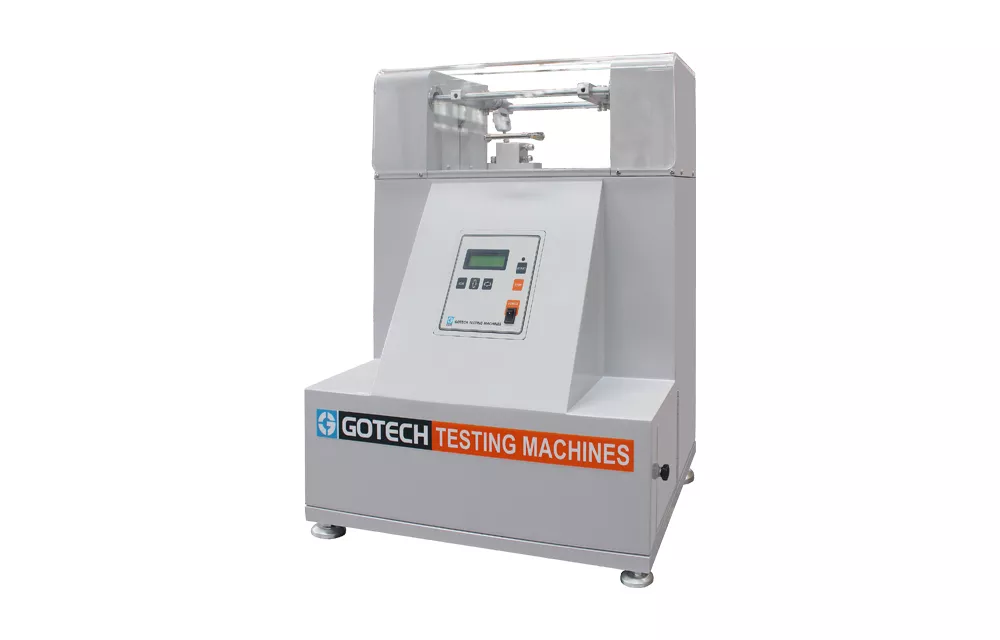

- The GT-7050-A is specifically designed to assess the fatigue resistance of steel shanks used in shoes.
- The test specimens are reciprocated under a specified load during fatigue tests. Once the predetermined number of cycles is reached or upon specimen failure, this instrument will stop running.
-
Standards
- GB/T 3903.35-2008
- ISO 18895:2006
Principle
Designed to assess the fatigue resistance of footwear steel shanks, this instrument fixes the ends of the specimen and applies a force of 49 ± 2 N to the upper jaw, causing the clamped steel shank to reciprocate. The number of cycles at which the specimen fails provides valuable insights into its fatigue resistance.
Application:
Well-suited to assess the fatigue resistance of steel shanks used in shoes, this instrument supports manufacturers in ensuring consistent quality assurance and conducting research to improve material properties.
Reliability:
This instrument securely fixes the ends of the specimen and applies a force of 49 ± 2 N to the upper jaw, causing the clamped steel shank to reciprocate.
Steel shanks performance assessment:
By replicating pressure and stress encountered during the use of steel shank, the GT-7050-A enables operators to ensure its stability over long-term use.
Production monitoring:
Assists manufacturers in monitoring the quality of steel shanks during the production process, ensuring they meet specific requirements.
Standard conformity:
Ensures that products meet industry standards and satisfy quality expectations in the market.
-
Fatigue resistance assessment
Through reciprocation at a fixed stroke and load, this instrument replicates real-world scenarios encountered during the use of steel shanks.
Auto-stop
Automatically stops running upon the completion of tests or specimen failure, enhancing the efficiency of test result assessment.
Intuitive interface
The intuitive and easy-to-use interface allows operators to quickly learn how to operate the instrument.
-
左右滑動看表格Test speed 240 cpm Force applied to sample in cyclic test 49±2 N (5±0.2 kg) Distance between the center of the upper jaw and the top edge of the lower clamp 7±0.2 cm Counter LCD display, 0 to 99,999,999 (adjustable) Torque applied to tighten lower clamp 4900N‧mm±50N‧mm Dimensions (W×D×H) 55×35×74 cm Weight 30 kg Power 1∮, AC 220V, 50/60Hz (or specify)
＊Product design and specifications are subject to change without notice.
-
Details
Standards
- GB/T 3903.35-2008
- ISO 18895:2006
Principle
Designed to assess the fatigue resistance of footwear steel shanks, this instrument fixes the ends of the specimen and applies a force of 49 ± 2 N to the upper jaw, causing the clamped steel shank to reciprocate. The number of cycles at which the specimen fails provides valuable insights into its fatigue resistance.
Application:
Well-suited to assess the fatigue resistance of steel shanks used in shoes, this instrument supports manufacturers in ensuring consistent quality assurance and conducting research to improve material properties.
Reliability:
This instrument securely fixes the ends of the specimen and applies a force of 49 ± 2 N to the upper jaw, causing the clamped steel shank to reciprocate.
Steel shanks performance assessment:
By replicating pressure and stress encountered during the use of steel shank, the GT-7050-A enables operators to ensure its stability over long-term use.
Production monitoring:
Assists manufacturers in monitoring the quality of steel shanks during the production process, ensuring they meet specific requirements.
Standard conformity:
Ensures that products meet industry standards and satisfy quality expectations in the market.
-
Features
Fatigue resistance assessment
Through reciprocation at a fixed stroke and load, this instrument replicates real-world scenarios encountered during the use of steel shanks.
Auto-stop
Automatically stops running upon the completion of tests or specimen failure, enhancing the efficiency of test result assessment.
Intuitive interface
The intuitive and easy-to-use interface allows operators to quickly learn how to operate the instrument.
-
Specifications 左右滑動看表格
Test speed 240 cpm Force applied to sample in cyclic test 49±2 N (5±0.2 kg) Distance between the center of the upper jaw and the top edge of the lower clamp 7±0.2 cm Counter LCD display, 0 to 99,999,999 (adjustable) Torque applied to tighten lower clamp 4900N‧mm±50N‧mm Dimensions (W×D×H) 55×35×74 cm Weight 30 kg Power 1∮, AC 220V, 50/60Hz (or specify)
＊Product design and specifications are subject to change without notice.
