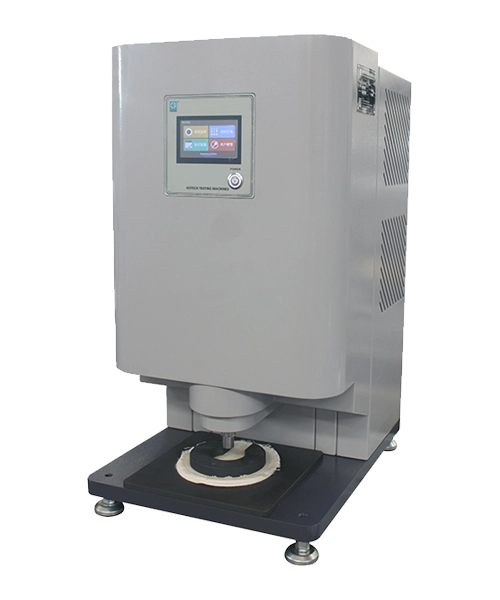

    Textile Floor Coverings Thickness Tester

    Model: GT-313-CPA


    Standard conformance: ISO 3415.

    The GT-313-CPA is specifically designed to assess the thickness of textile floor coverings.

    Features:
    1. Combines a PLC and HMI control system with a pneumatic cylinder and motorized drive mechanism.
    2. Automatically applies pressure of 2KPa and 220KPa, then measures the specimen thickness after a specific recovery period.
/

    Rubber Tensile Fatigue Tester

    Model: GT-7011-DLED


    Standard conformance: GB/T1688-2008, ISO6943:2017, and BS ISO6943:2017.

    The GT-7011-DLED, offering adjustable conditions of strain, temperature, and frequency, is specifically designed to determine the tension fatigue characteristics of vulcanized rubber under repeated tensile deformations.

    Features:
    1. Driven by a servo motor and an eccentric drive mechanism.
    2. Includes PLC+HMI control, fracture detection, flex cycle count, and image capture and upload.
    3. Easy-to-use grips and auto-adjustable stroke.
    4. Meets the requirements of Demattia and tensile fatigue tests, offering a variety of optional test conditions such as temperature, number of test stations, image capture, and crack analysis.

/

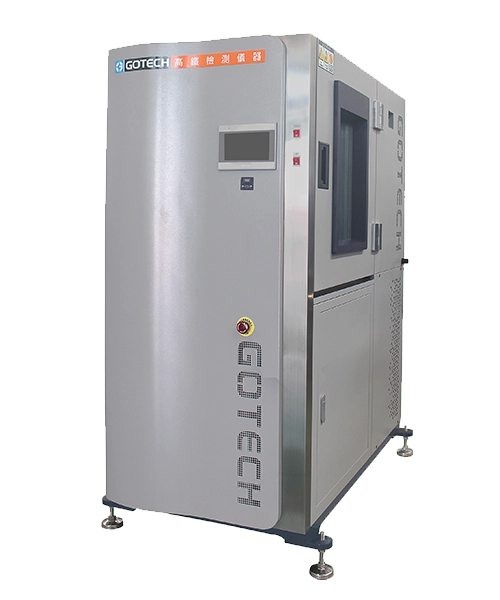

    Rubber Tensile Fatigue Tester

    Model: GT-7011-DLLM


    Standard conformance: GB/T1688-2008, ISO6943:2017, and BS ISO6943:2017.

    The GT-7011-DLLM, offering adjustable conditions of strain, temperature, and frequency, is specifically designed to determine the tension fatigue characteristics of vulcanized rubber under repeated tensile deformations.

    Features:
    1. Driven by a linear motor drive mechanism for a more efficient performance.
    2. Includes PLC+HMI control, fracture detection, flex cycle count, and image capture and upload.
    3. Easy-to-use grips and auto-adjustable stroke.
    4. Meets the requirements of Demattia and tensile fatigue tests, offering a variety of optional test conditions such as temperature, number of test stations, image capture, and crack analysis.

/

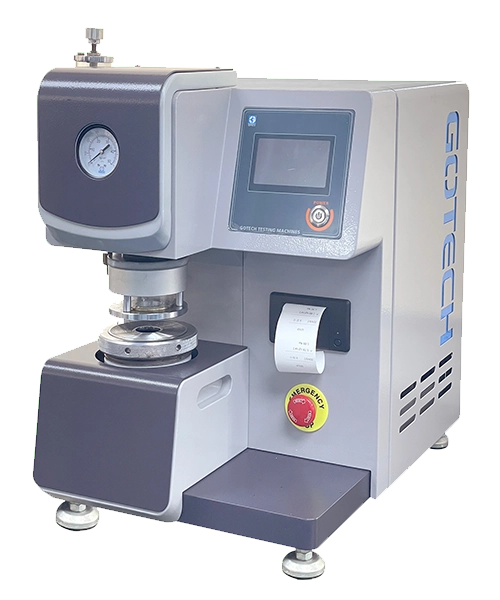

    Digital Type Bursting Strength Tester

    Model: GT-7013-MPA


    Standard conformance: GB/T 1539, ASTM D3786, ISO 2758, GB/T 454, TAPPI T403, and ASTM D3786M-18.

    With its automated operation system, the GT-7013-MPA provides an efficient method for assessing the bursting strength of paper, fabrics, and leather.

    Features:
    Offers both manual and automatic test modes. In auto mode, the tester automatically detects the specimen, performs gripping, and runs the bursting test. After the test, the results are calculated and stored.

/

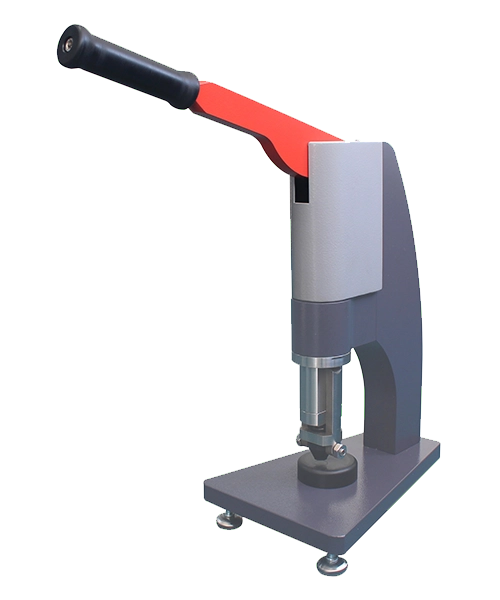

    Plastimeter Punch

    Model: GT-7016-SM


    Features ease of use and a precise cutter, the GT-7016-SM produces specimens required for plasticity testing.



/

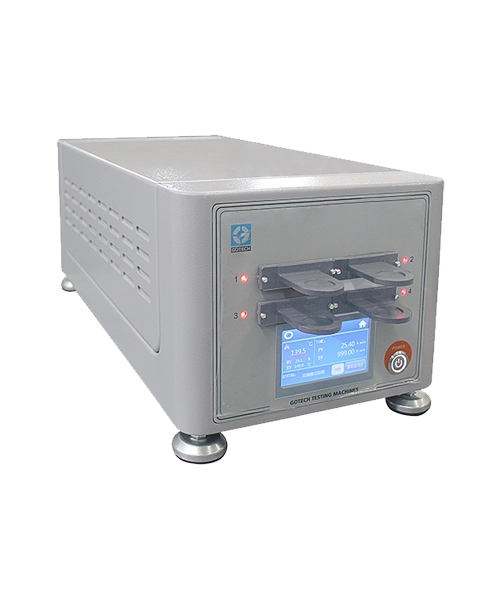

    Plastimeter Aging Oven

    Model: GT-7024-F


    Standard conformance: GB/T 3517.

    The GT-7024-F is specifically designed to perform aging test on raw rubber and unvulcanized rubber.

    Features:
    Integrated with an HMI control system for easy operation, the GT-7024-F is capable of recovering temperature to 140℃ within 2min.

/

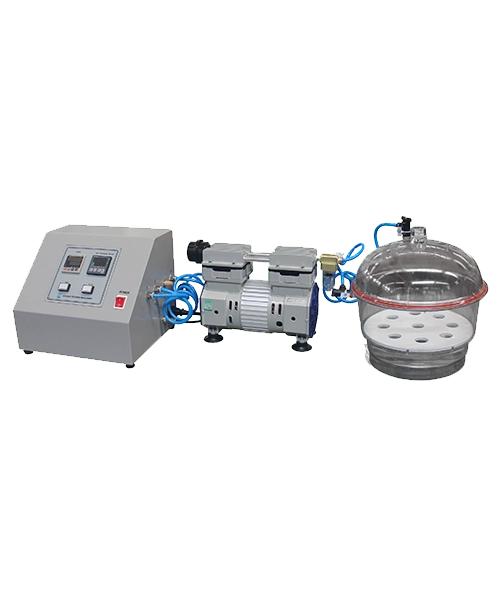

    Vacuum Desiccator

    Model: GT-7034-ES1


    Standard conformance: QB/T 2537 and ISO 11640.

    Designed to dry various materials for color fastness testing, the vacuum desiccator is an auxiliary device for the GT-7034-ES rub fastness tester.


/

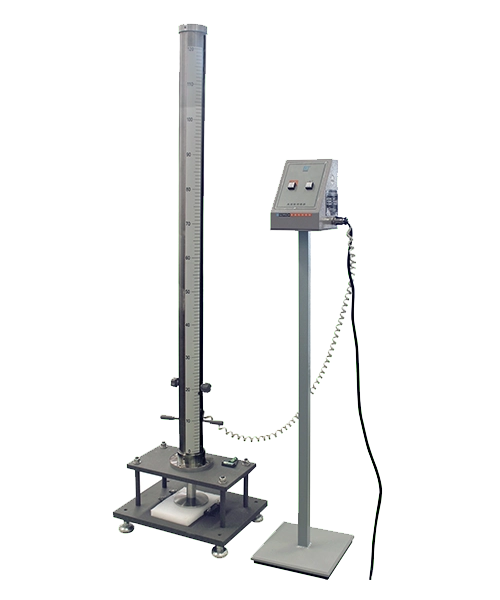

    Plastic Tower Packing Drop Impact Tester

    Model: GT-7037-F3


    Standard conformance: HG/T 3213-2018.

    The GT-7037-F3 is specifically designed to determine the drop impact strength of plastic tower packing.

    Features:
    1. Equipped with a stainless steel guide tube to ensure the free fall of striker at any drop height.
    2. Offers adjustable drop height and easy operation.

/

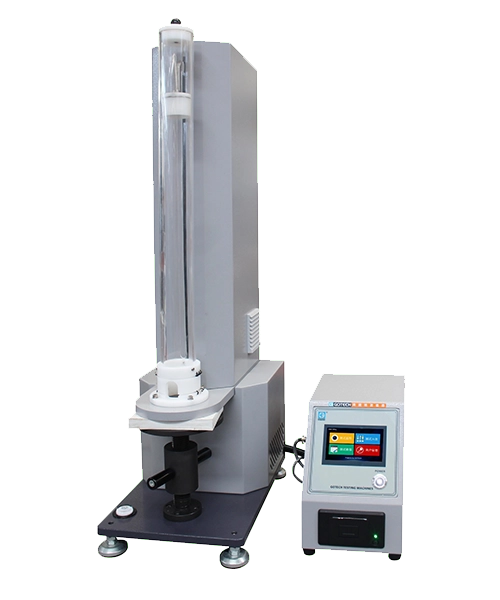

    Cellular Plastics Rebound Resilience Tester

    Model: GT-7042-GB


    Standard conformance: GB/T 6670.

    The GT-7042-GB is specifically designed to determine the rebound resilience of flexible polyurethane foam.

    Features:
    1. PLC+HMI control system and manual specimen clamping.
    2. Includes electromagnetic ball release, high-precision photoelectric speed detector, and auto-calculation of rebound resilience.

/

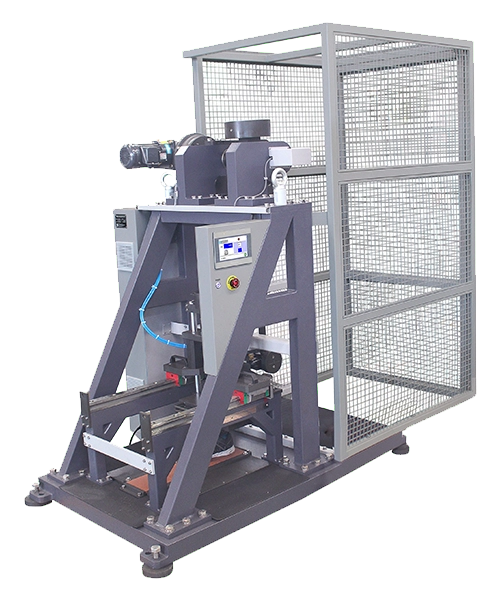

    Shoe Stability Tester

    Model: GT-7045-SS1


    The GT-7045-SS1 is specifically designed to assess the resistance of finished shoes to impact slippage.

    Features:
    1. Equipped with a PLC and HMI control system, a manual clamping mechanism, and a protective cage.
    2. Includes adjustable impact energy and angle, auto-lifting and releasing pendulum, and impact safety guard.

/

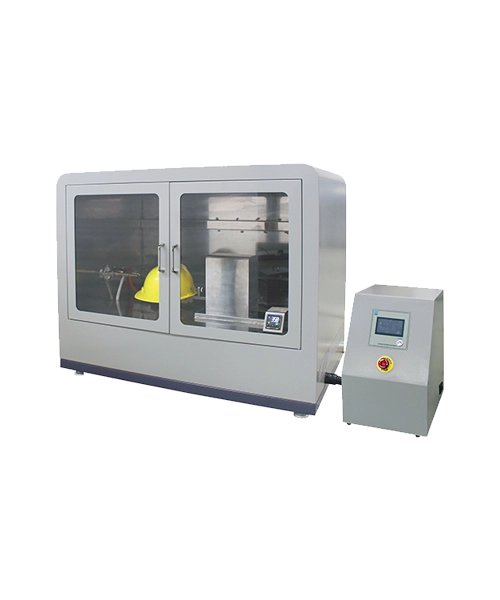

    Safety Helmet Flame Resistance Tester

    Model: GT-7057-C2


    Standard conformance: GB/T 2812.

    The safety helmet flame tester simulates real-world flame conditions to evaluate the resistance of safety helmet to heat and flame in high-temperature environments, ensuring it provides adequate protection for wearers.

    Features:
    1. Electronic pulse igniter with adjustable flame length.
    2. Capable of automatically adjusting the distance between the specimen and the flame igniter using a motorized specimen fixture mechanism.

/

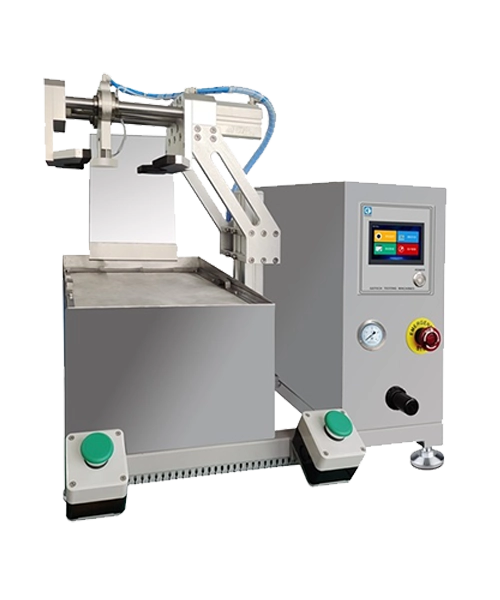

    Shoe Lining Internal Pressure Resistance Tester

    Model: GT-7071-SWH


    Standard conformance: GORE-TEX.

    The GT-7071-SWH is specifically designed to assess the resistance of shoe linings to internal pressure in various types of shoes and boots.

    Features:
    1. Precisely measures the variation of pressure in the shoe linings with high-precision pressure transducer for accurate and reliable results.
    2. Combines with a high-efficiency PLC module for simplified programming and smooth operation.


/

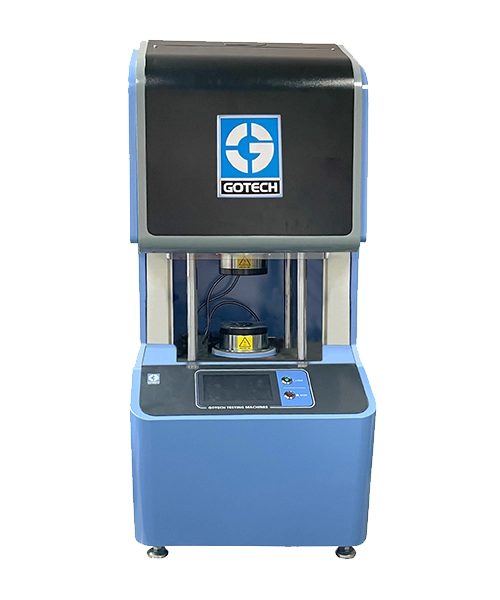

    Moving Die Rheometer

    Model: M-6000A


    Standard conformance: GB/T 16584-1996, ISO 6502-3-2018, and ASTM D5289-2017.

    The M-6000A moving die rheometer is an advanced instrument designed to deliver valuable insights into the rheological behavior and processability of polymers and compound materials.

    Features:
    1. The new model features a lightweight structure with enhanced functionality, improved usability, and greater test accuracy.
    2. Compatible with a rotary-type specimen auto-loading system for seamless automated operation.
    3. Includes high-precision measurement, wear-resistant molds, constant temperature control, and high-efficiency thermal insulation.

/

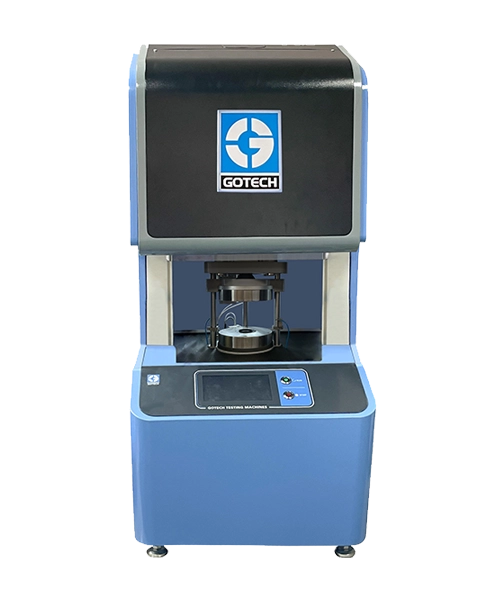

    Mooney Viscometer

    Model: MV-6000


    Standard conformance: ASTMD1646-2017, GB/T 1233-2008, GB/T 1232.1-2016, ISO 289-2-2016, and ISO 289-1-2015.

    The MV-6000 Mooney viscometer is specifically designed for determining the viscosity and scorch of raw rubber or compounded rubber, offering valuable insights into the processibility, molecular weight, and distribution range in rubber manufacturing.

    Features:
    1. The new model features a lightweight structure with enhanced functionality, improved usability, and greater test accuracy.
    2. Includes high-precision measurement, wear-resistant molds, constant temperature control, and high-efficiency thermal insulation.

/

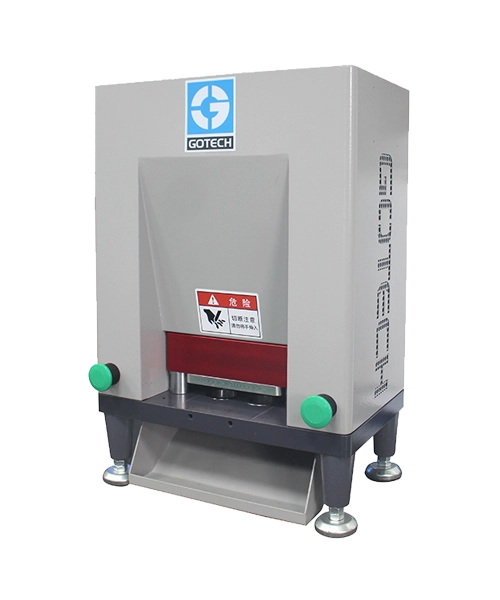

    Pneumatic Sample Cutter

    Model: M-V-V2A2



    The pneumatic sample cutter is designed to cut rubber compounds to standard specifications for curing tests with moving die rheometers or Mooney viscometers.

    Features:
    1. Equipped with a dual-button control system that requires both buttons to be pressed simultaneously to start cutting, enhancing safety and preventing accidents.
    2. Ensures durable and reliable cutting performance with high-strength tool steel.

/

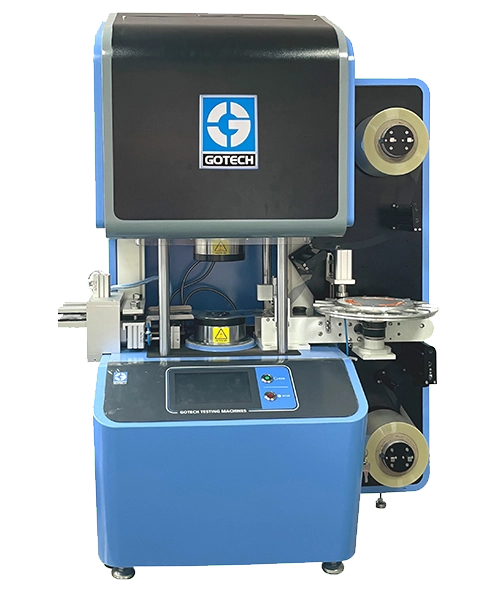

    Automatic Sample Feeding System (16pcs)

    Model: M-NAS16



    Designed to integrate with Gotech's moving die rheometer, the M-NAS16 automates the specimen loading process, enhancing productivity and ensuring repeatable results during testing.

    Features:
    1. Automatically loads the specimen, closes the dies, runs the test for a specified time, opens the dies, and removes the post-specimen. This process can be automatically repeated up to 16 times.
    2. Includes automatic specimen loading, specimen detection sensor, and post-test specimen removal.

/

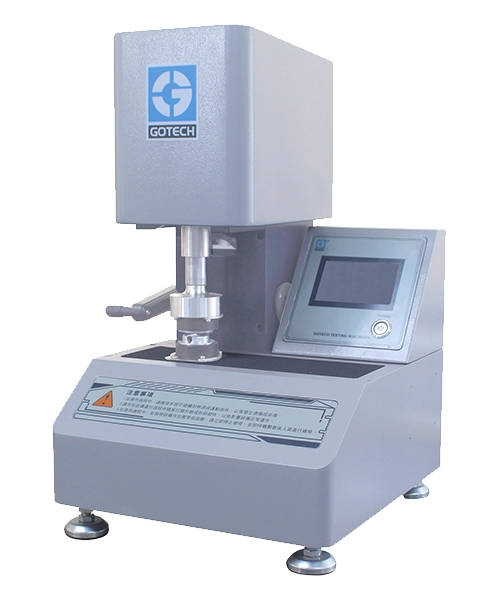

    Rapid Plastimeter

    Model: GT-FSM01



    Standard conformance: ISO 2007, BS/ISO 2007, ASTM D3194, JIS K6300-3, and GB/T 3510.

    The GT-FSM01 is specifically designed to determine the plasticity of raw rubber and unvulcanized rubber. It is also suitable for determining the plasticity retention index (PRI) of raw rubber.

    Features:
    1. Integrates with HMI and SSR control systems for efficient operation.
    2. Equipped with high-precision force loading and thickness measuring systems, ensuring stable load application and accurate thickness measurement.
    3. An optional plastimeter punch is available for cutting test pieces to fixed dimensions.

/

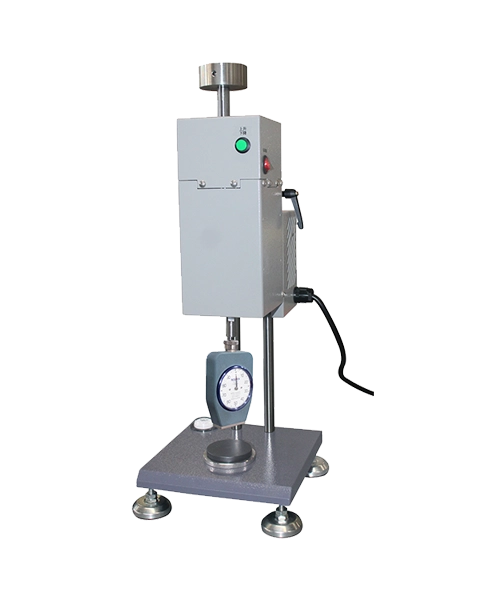

    Motorized Test Stand of Hardness Tester

    Model: GT-GS-AB



    Standard conformance: GB/T531.1.

    The GT-GS-AB test stand provides support and stability for durometers, ensuring accurate and efficient hardness measurements.

    Features:
    1. Offers a range of optional adapters to fit various durometers.
    2. Features a motorized mechanism that allows the durometer to move vertically using up and down control keys.

/

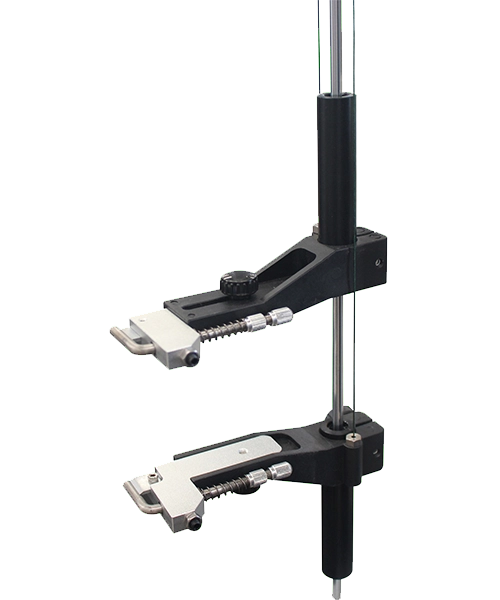

    Extensometer

    Model: U33L-2



    The U33-L2 is specifically designed to integrate with Gotech's tensile tester to measure the strain of materials such as rubber, elastomers, and wires under tension and tearing. It is capable of measuring strain in specific areas of irregularly shaped specimens.



/

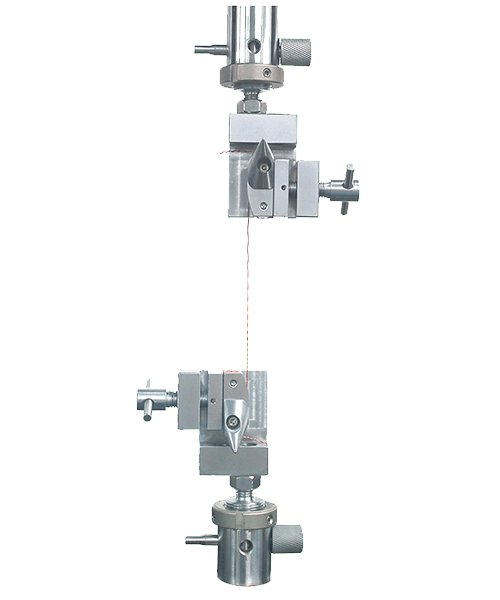

    Thread Tensile Grips

    Model: T-200-1



    The T-200-1 grips are specifically designed to measure the breaking force, maximum elongation, and tightness of threads.

    Features:
    Grip mechanism: Manual gripping.
    Structure: With its symmetrical design and sturdy structure, these grips ensure secure specimen gripping and proper alignment, minimizing damage at the gripped area and delivering accurate results.
    Application: Well-suited for testing threads used in footwear.

/

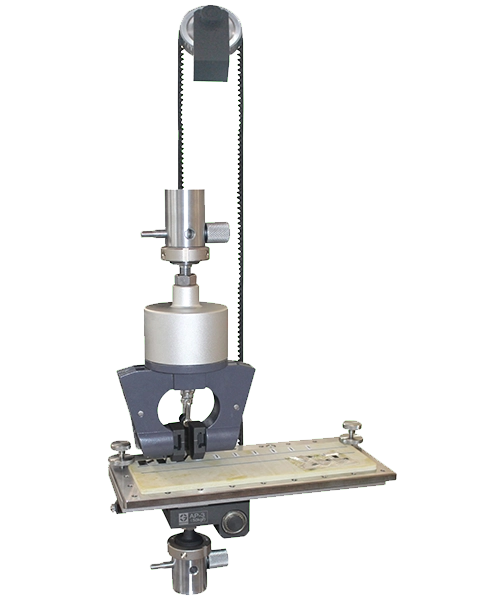

    90-Degree Peeling Grips

    Model: RB-7-5A



    The RB-7-5A grips are specifically designed to determine the resistance of protective films used in electronic components to peeling at 90-degree angle.

    Features:
    Grip mechanism: Pneumatic and manual gripping.
    Structure: Features consistent upward and lateral displacement and a transmission belt designed for quick installation.
    Application: Well-suited for peel testing of protective films used in electronic components.


/

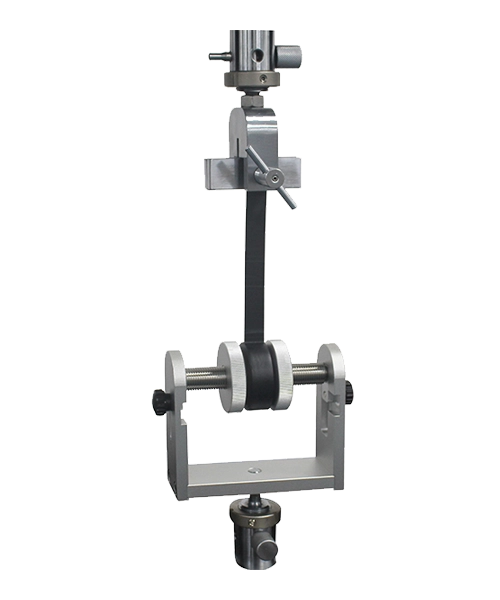

    Tapes Unwinding Force Grips

    Model: RB-6-8



    Standard conformance: GB/T4850-2002.

    The RB-6-8 grips are specifically designed to determine the unwinding force of pressure sensitive tapes at low speed.

    Features:
    Grip mechanism: Pneumatic and manual gripping.
    Structure: The design of the lower grip enables flexible and quick gripping of specimens with a width of up to 80mm.
    Application: Well-suited for unwinding a roll of pressure sentitive tape without insulating layer.
